Accurate and smart power management from your solar panels to batteries.

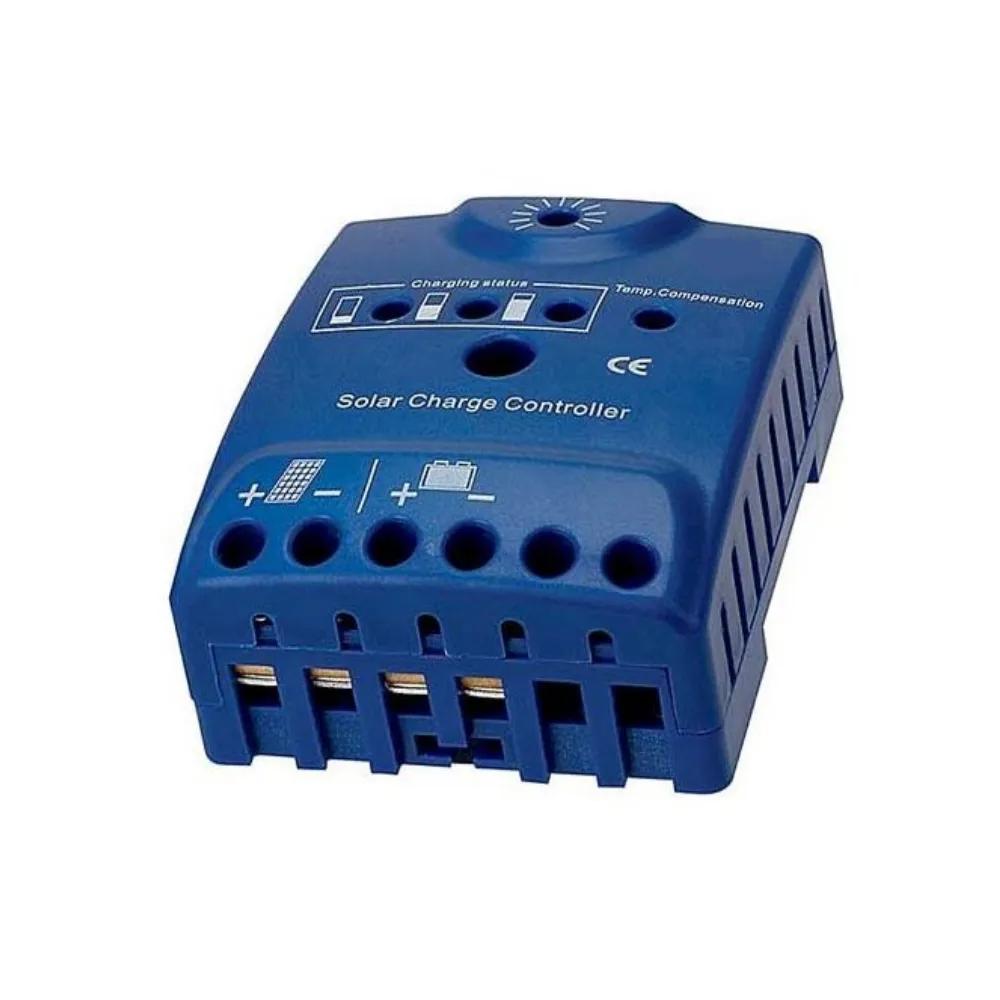

The solar charge controller is designed to protect your 12 volt (Lead-Acid (Standard), GEL, VRLA, or Flooded) battery from being overcharged by solar panels. It also provides protection from reverse battery connection.
This controller features temperature compensation which automatically changes the battery charging set points when the ambient temperature fluctuates.
DIN Rail Mounting
This Solar Charge Controller is equipped for mounting on 35mm DIN rails with 1mm or less thickness (0.8 is best). The center screw hole provides an ideal location for mounting when a DIN rail is not being used.
WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
- Max Charging Current: 10 Amp
- Max Solar Cell Power: 120 Watts
- DC Input Voltage: 12 Volts (nominal)
- Input Source: Solar Panel
- Output: Battery
- Temperature Compensation: Automatic
- Charge Regulation: PWM
- Dimensions LxWxH (in): 3.25 x 2.75 x 1.5
- Weight: 0.5 lbs.
- Model ID: C1210
Warranty: 1 year
