- High precision watt checker - the gauge could measure 0-200 A, resolution 0.01A; 0-60 V, resolution 0.01V; 0-6554 W, resolution 0.1W; 0-65 Ah, resolution 0.001Ah; 0-6554 Wh, resolution 0.01Wh
- Multiple use tester - showing Current (A), Voltage (V), Watts (W), Amp-hours (Ah), Watt-hours (Wh), Peak Amps (Ap), Minimum Volts (Vm), Peak Watts (Wp)
- Application extensive - widely application battery tester, can test solar power, batteries and chargers. Measuring the operating voltage to keep the battery, motor, wiring, connector working well

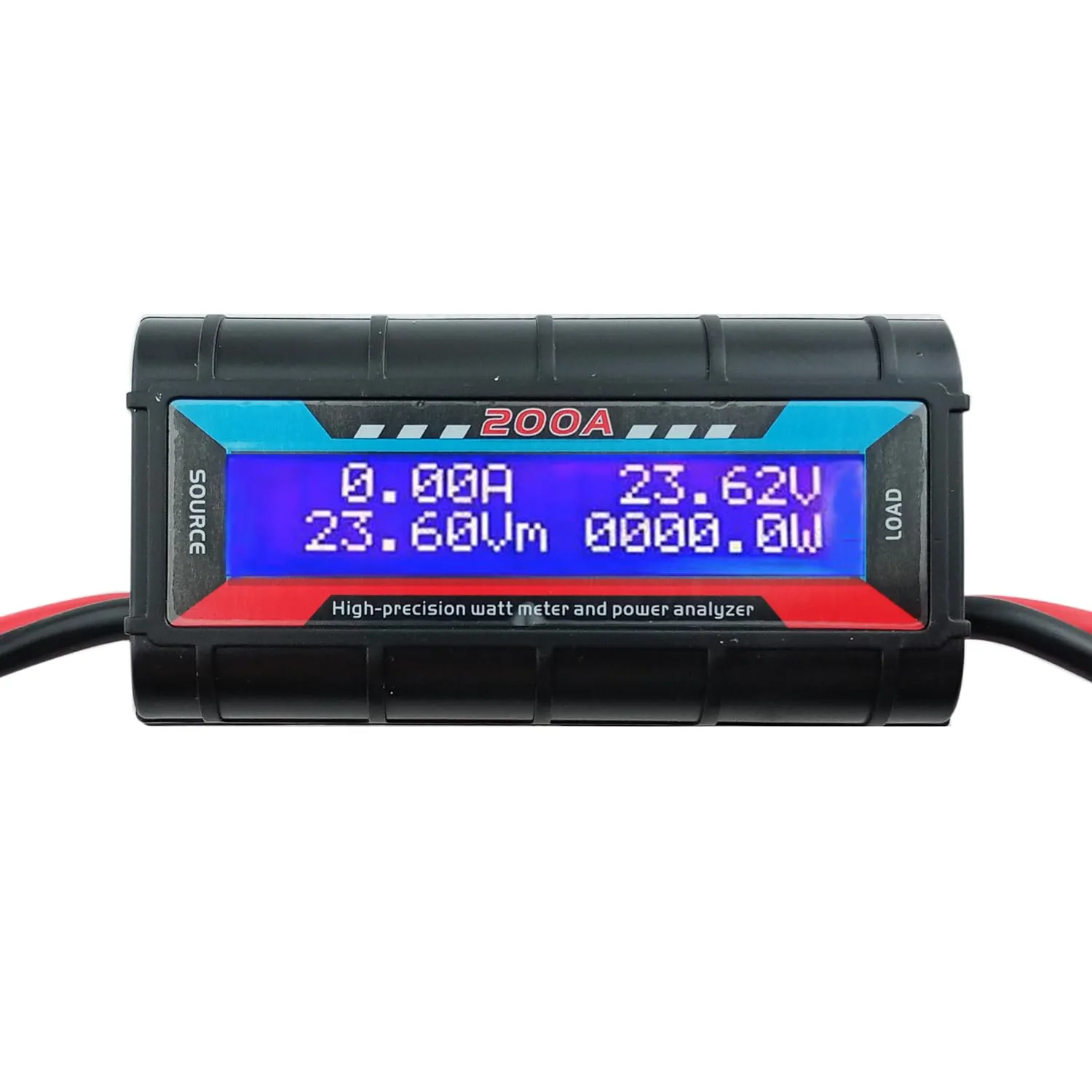

- Easy to read - 200A high precision watt meter comes with a 16 * 2 backlit LCD screen, a very visible readout, showing the data clearly even in dark and in the sun
- Attention - the watt meter operates from 8V to 60V 0V with optional auxiliary battery, is designed to be safe in systems using less than 60V and carrying currents up to 200A.When the amp is over 200A, the current display will flash to alarm
Watt meter is a must for DIY and RC power project, installing on a power supply or other test tool to measure and setting.
This 200A high precision RC power analyzer is a great troubleshooting tool item,helping you with Voltage(V) Current(A) Power(W) Charge(Ah) and Energy(Wh) measurement!
All measurement screen values are updated every 0.4 seconds.
Bright backlit LCD display is easy for your reading.
Equipped with vents at the back,doing well in heat radiation.
Specifications
Measures 0-200 A, resolution 0.01A
0-60 V, resolution 0.01V
0-6554 W, resolution 0.1W
0-65 Ah, resolution 0.001Ah
0-6554 Wh, resolution 0.01Wh
Operates from 8-60 V 0V with optional auxiliary battery.
16x2, backlit LCD display.

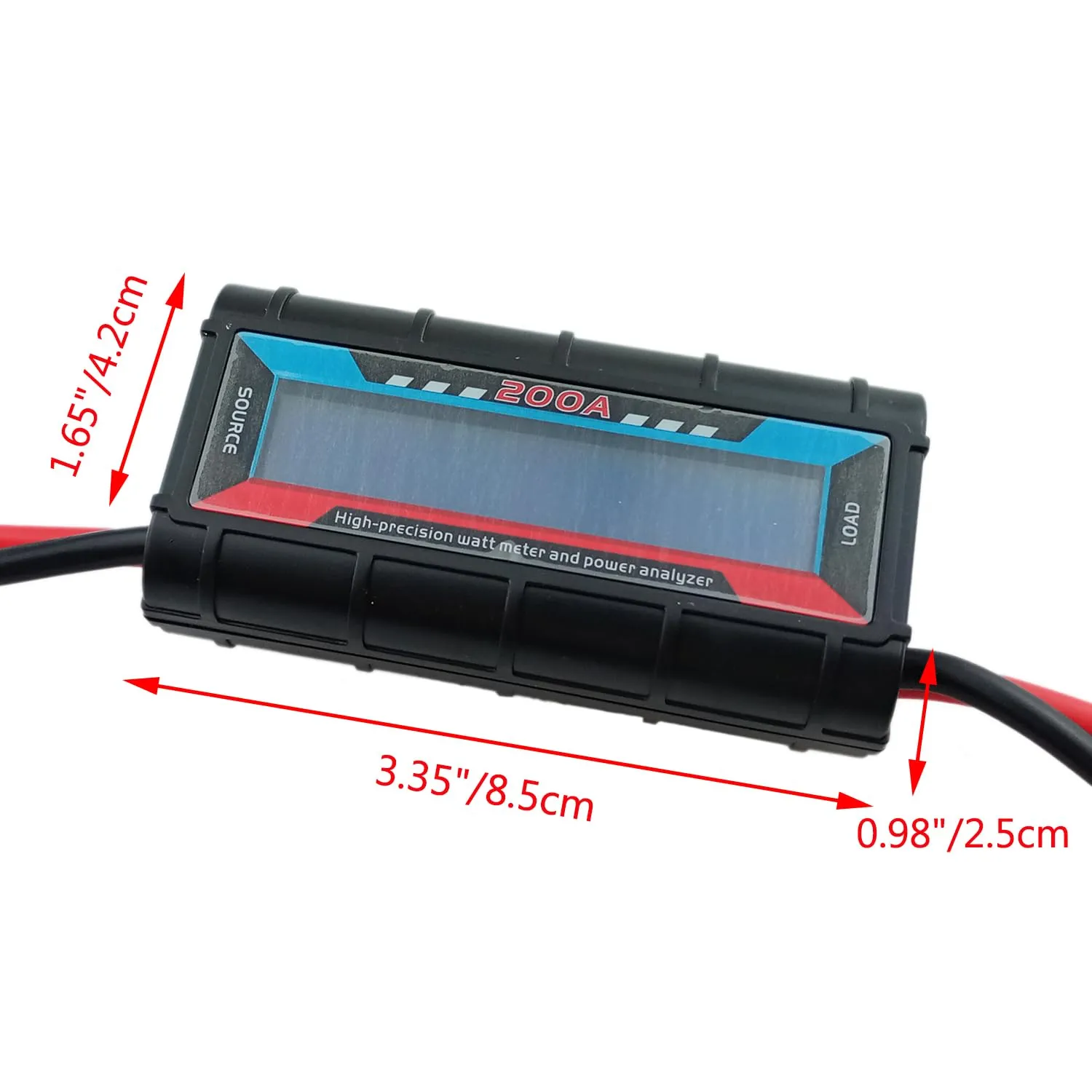

Size: 3.35" x 1.65" x 0.98" / 85x42x25mm
Weight: 2.79oz / 79 g
Package included: 1 x watt meter, 1 x manual
Notice
Ensure that all wiring and connections are rated to handle the input or output current, and are properly assembled for each application.
- Package Dimensions : 4.57 x 3.19 x 1.65 inches; 2.82 ounces
- Date First Available : July 18, 2023
- Manufacturer : LoveDeal
- Country of Origin : China
