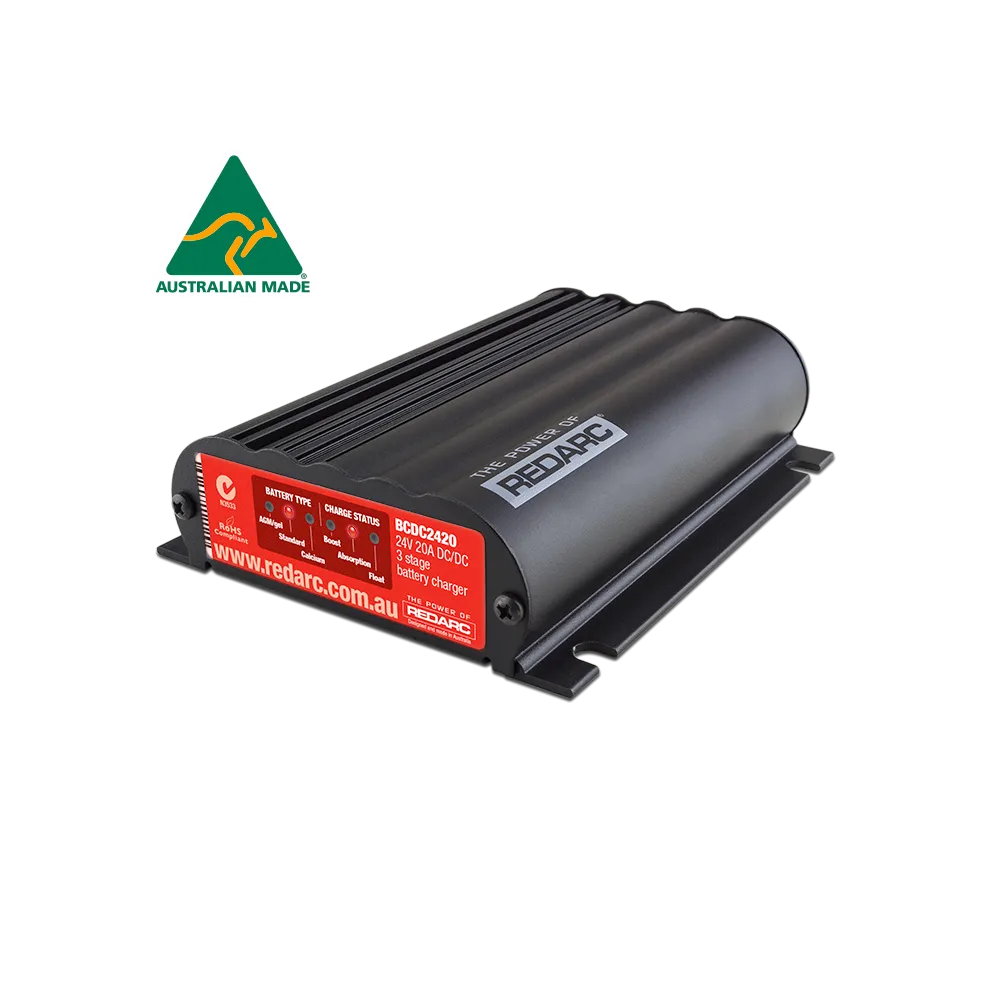

The BCDC2420 features a multi-stage charging algorithm. with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The BCDC2420 features a MPPT Solar Regulator. which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features
- Multi-Stage DC to DC Battery Charger
- MPPT Solar Regulator
- Start Battery Isolator
- Fully sealed
- No fan for super-quiet operation
- Charges AGM. Gel. Calcium content. VRLA and Standard Lead Acid batteries
Mounting Brackets
REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow. ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
Input (Operating) Voltage :
9 - 32VDC
Maximum Charging Voltage :
30.6V
Output Current Rating (Cont.) :
20A
Input Fuse Rating :
50A
Output Fuse Rating :
30A
Warranty :
2 Years
Standby Current Draw :
<50mA
Output System Voltage :
24VDC
Output Power :
600W
Length (mm) :
150
Width (mm) :
120
Height (mm) :
37
Weight (kg) :
0.68
Type Approval :
E and CE
