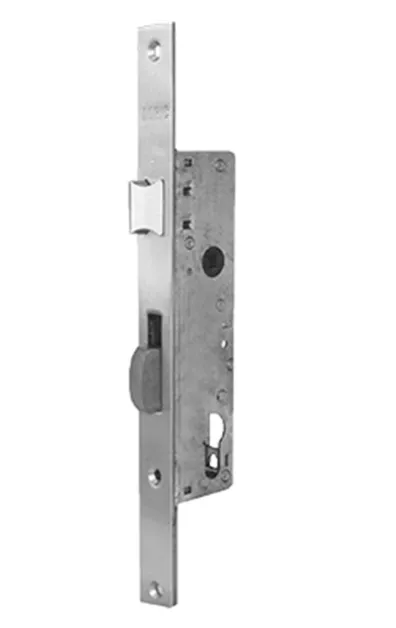

DS1269 HD lock body only - single point

Reversible brass latch bolt chrome plated with 10mm throw

Steel deadbolt, 26mm projection, with hardened steel middle plate

Finish: Satin stainless steel

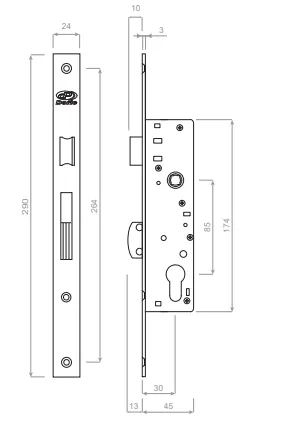

Narrow 24mm x 290mm face plate

Backset: 30mm

NOTES:

Suits Euro cylinder – 5 pin C4 with fixed drive cam - SEARCH SKU: 4274 to add to the order
