Key features are:
MPPT charge controller to extract up to 30% more power from Panels Inbuilt isolation transformer to protect from grid surges and noise Charging from both mains and solarSelectable source priority: Choose source priority from solar, battery and gridCompliance to IEC standards for safety, reliability and quality

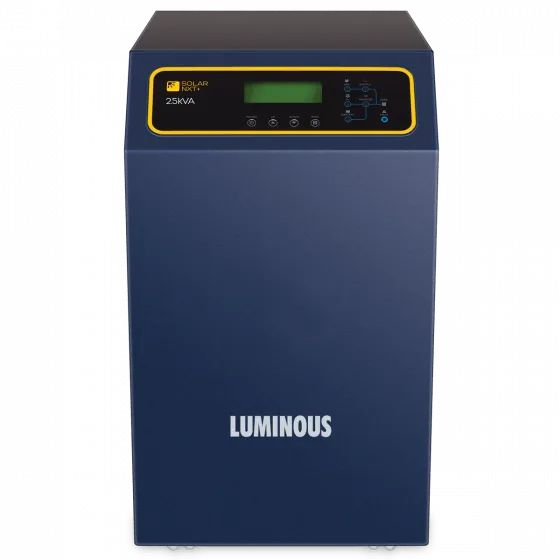

Luminous Solar Inverter Specifications
More Information| Model | NXT 2.5 kVA |
| Range Name (Solar) | PCU |
| Luminous Solar Inverter VA Rating | 2.5 kVA |
| Output Waveform | Sine Wave Inverter |
| Luminous Solar Inverter Warranty | 24 months |
| Luminous Solar Inverter weight (kg.) | 37 kg |
| No. of 12V Batteries in Series | 4 |
| Dimensions (L*B*H) | 30.0*50.4*51.5 CM |
| Maximum Power Voltage Vmp (V) | 65V-130V |
| Max. supported panel power (Wp) | 2000 Wp |
| Nominal battery bank voltage | 48 V |
| Input Voltage Range (Voc) | 80V-165V |
| Contents of Pack | 1 N Inverter, 1 N Manual |
| Application Area | Commercial Applications, Homes and Small Shops |
