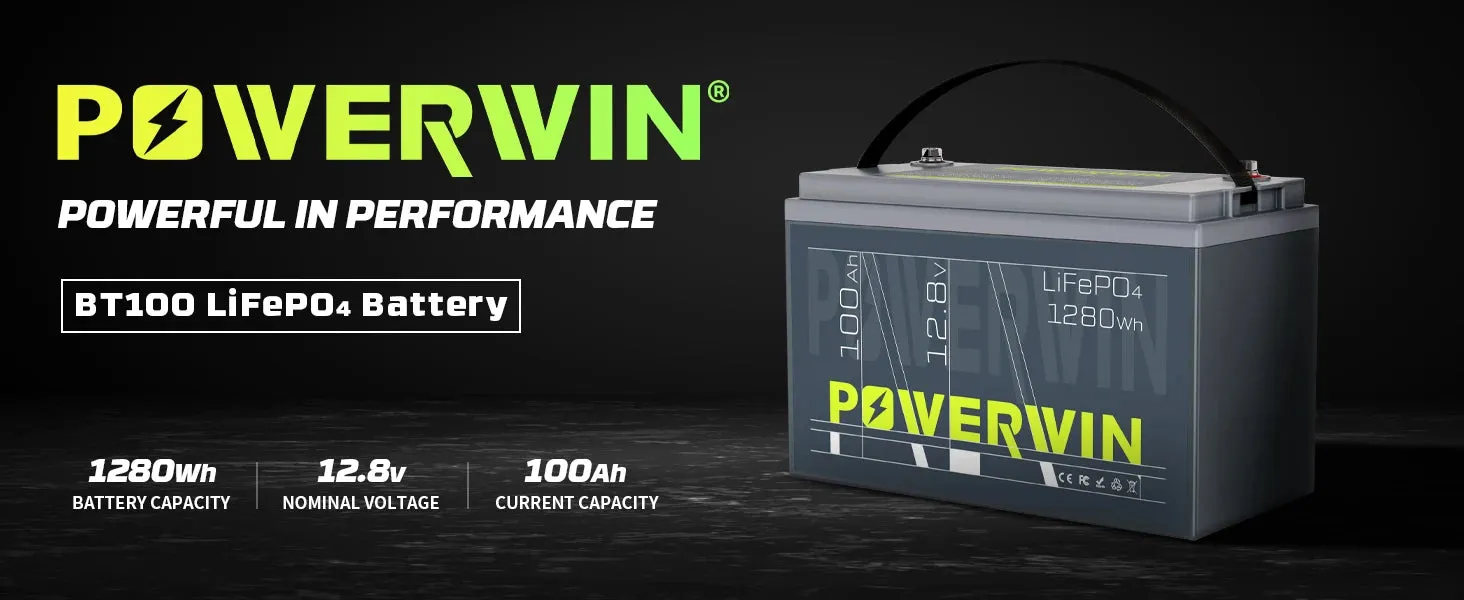

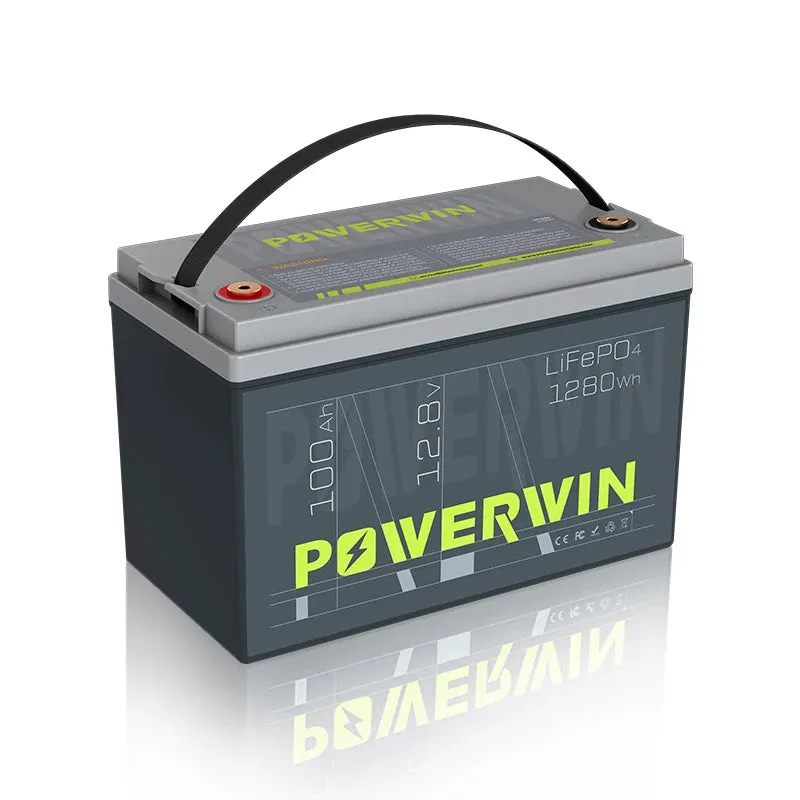

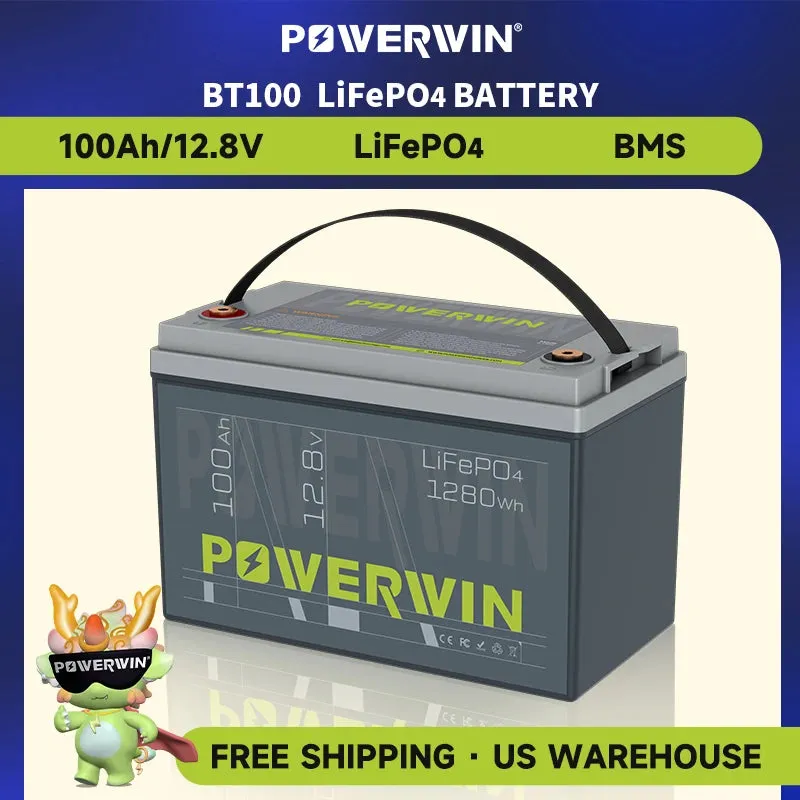

POWERWIN BT100
12.8V 100Ah LiFePO4 Battery
Model Number: POWERWIN BT100
Certification: CE
Certification: FCC
Certification: RoHS
Certification: UL

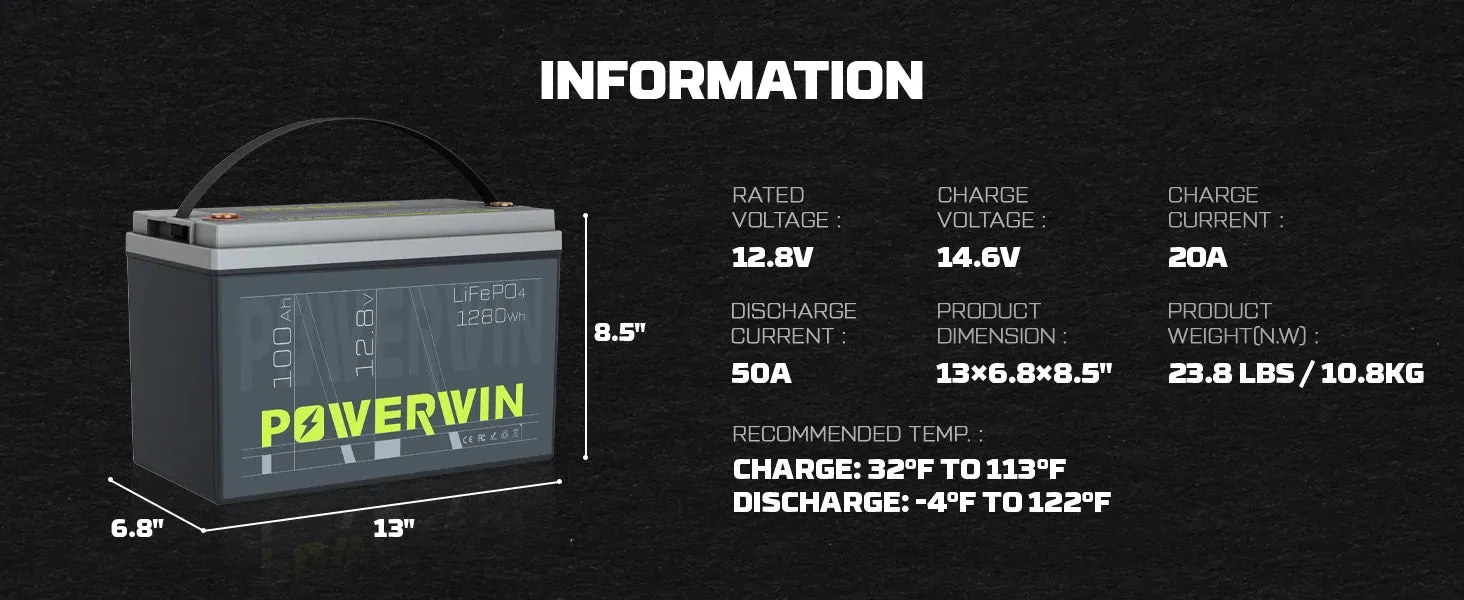

Wattage: 1000W
Voltage: 12V
MAX CHARGE VOLTAGE: 14.6V
CAPACITY: 1280Wh
SHELF-LIFE: Recharge to 80% Every 3-6 Months
COLOR: Space Gray
TYPE: LFP (Lithium Iron Phosphate)
LIFE CYCLES: 15000 Cycles to 60% DoD
MANAGEMENT SYSTEM: Battery Management System
DISCHARGE CUT-OFF VOLTAGE: 10V
CONTINUOUS CHARGE CURRENT: 100A MAX. (25℃ / 77℉)
PEAK DISCHARGE CURRENT: 200A in 5 seconds. (25℃ / 77℉)
WORKING TEMPERATURE 1: Charge: 0~45℃ / 32~113℉
WORKING TEMPERATURE 2: Discharge: -20~60℃ / -4~140℉
NOMINAL VOLTAGE: 12.8V
WORKING TEMPERATURE 3: Storage: -10~45℃ / 14~113℉
SHIPMENT FROM USA WAREHOUSE AND TAKE ABOUT 2-7 BUSINESS DAYS FOR DELIVERY AND 3-5 BUSINESS DAYS FOR PACKING AND HANDLING. If payment needs to clear then a few days for payment clear if paying by Echeck.
POWERWIN BT100
12.8V 100Ah LiFePO4 Battery
1280Wh Built-in BMS Solar Power 4000 Deep Cycle Off-grid Inverter
Big Power of All Purpose
POWERWIN BT100 uses a high-performance
100Ah 12.8V Lithium Iron Phosphate battery
with an advanced Battery Management System (BMS).
Designed to revolutionize your energy storage experience,
offers exceptional, reliability,
and longevity for a wide range of applications.

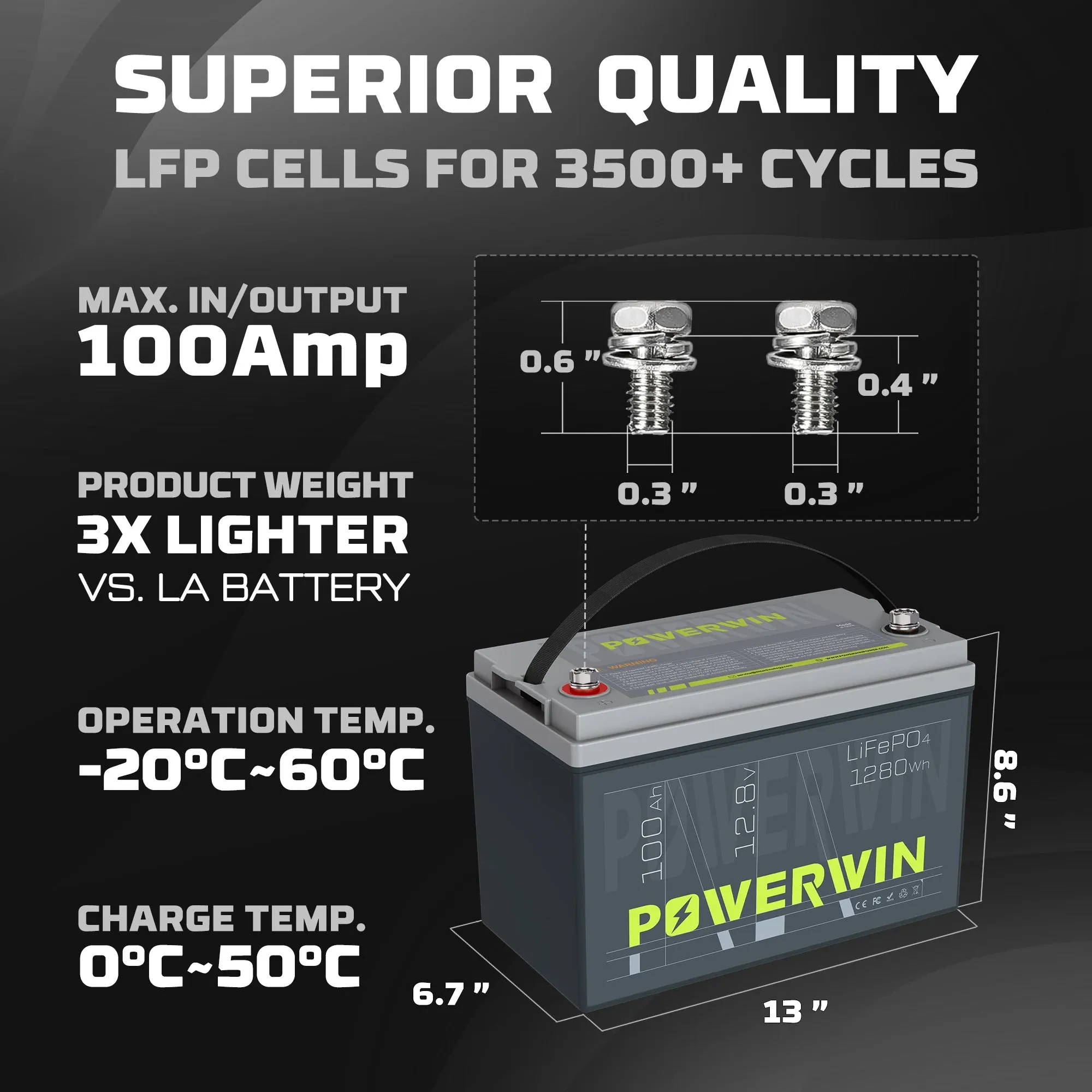

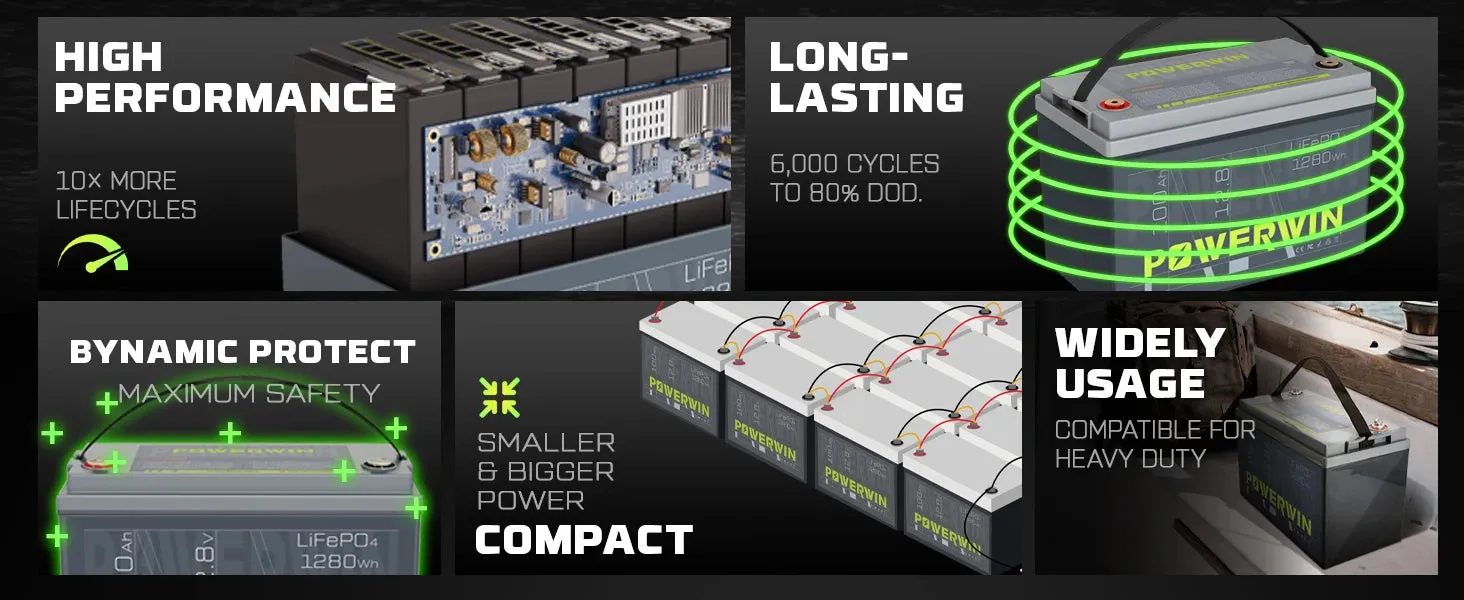

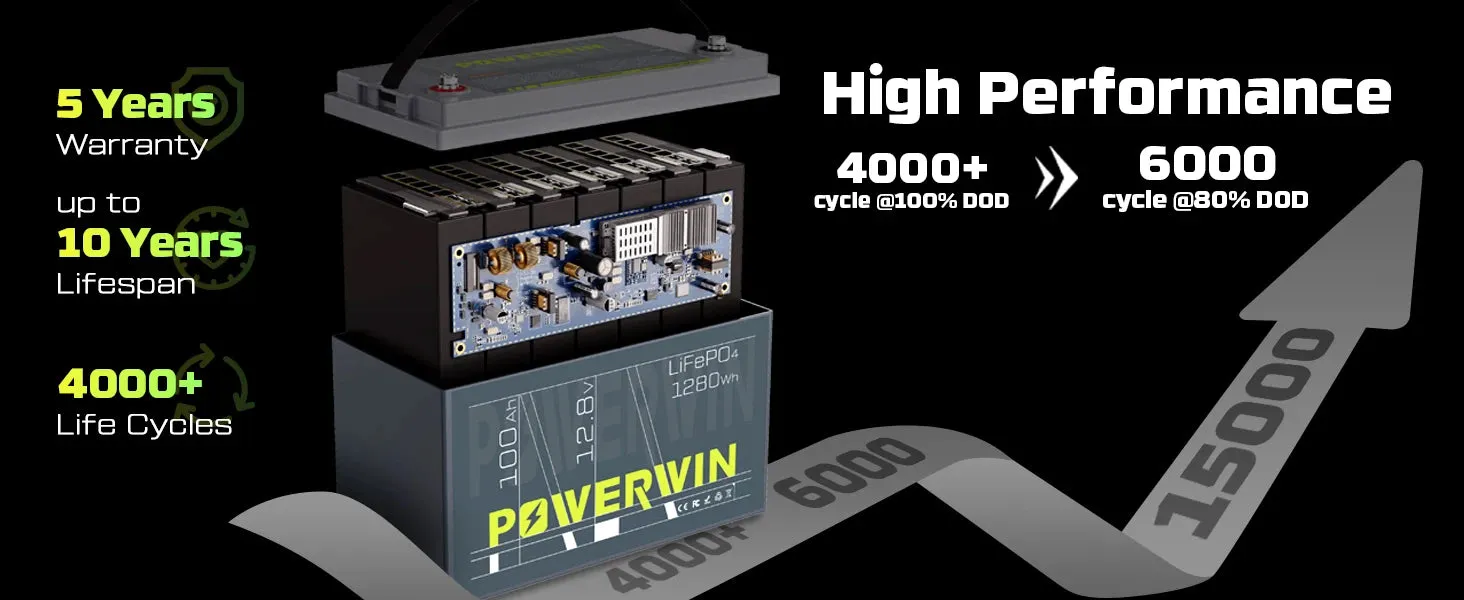

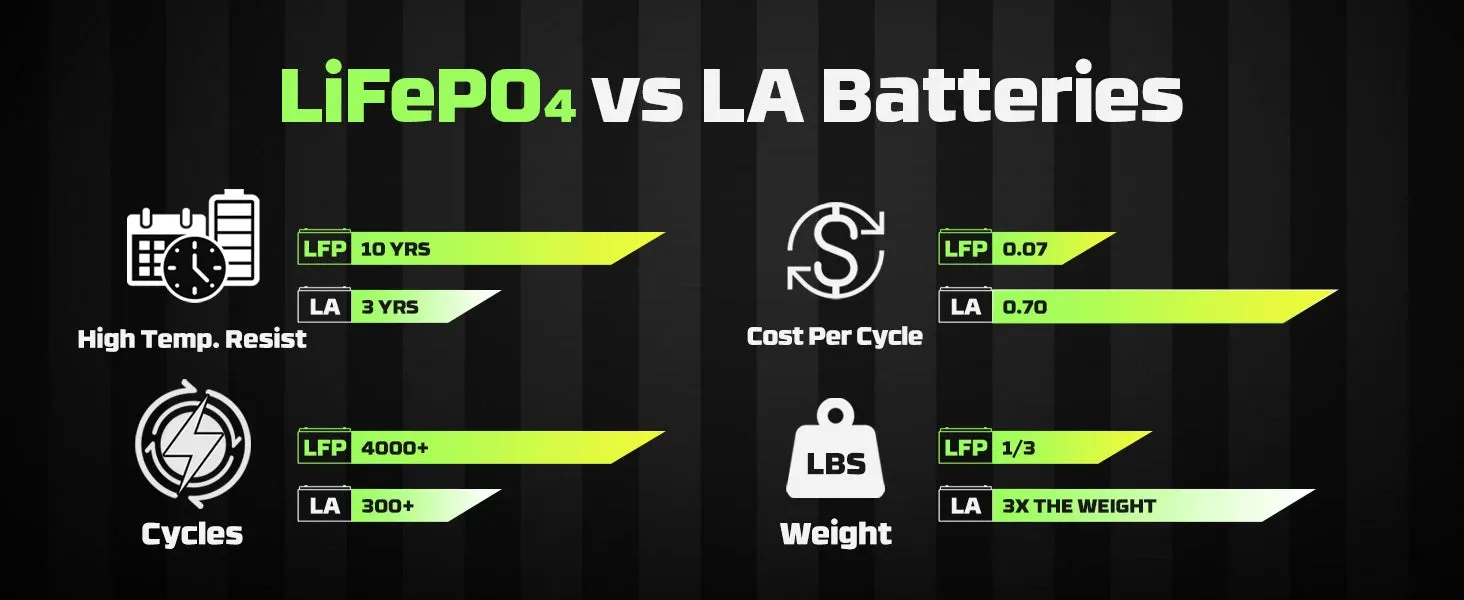

Deep Cycles & Longer-lasting
Premium LFP battery cell,durable quality.
Up to 6,000 cycles to 80% DoD.
BMS Battery Protection
Built-in Battery Management System (BMS) inside of the battery,
real time protect your battery while in charge or discharge.

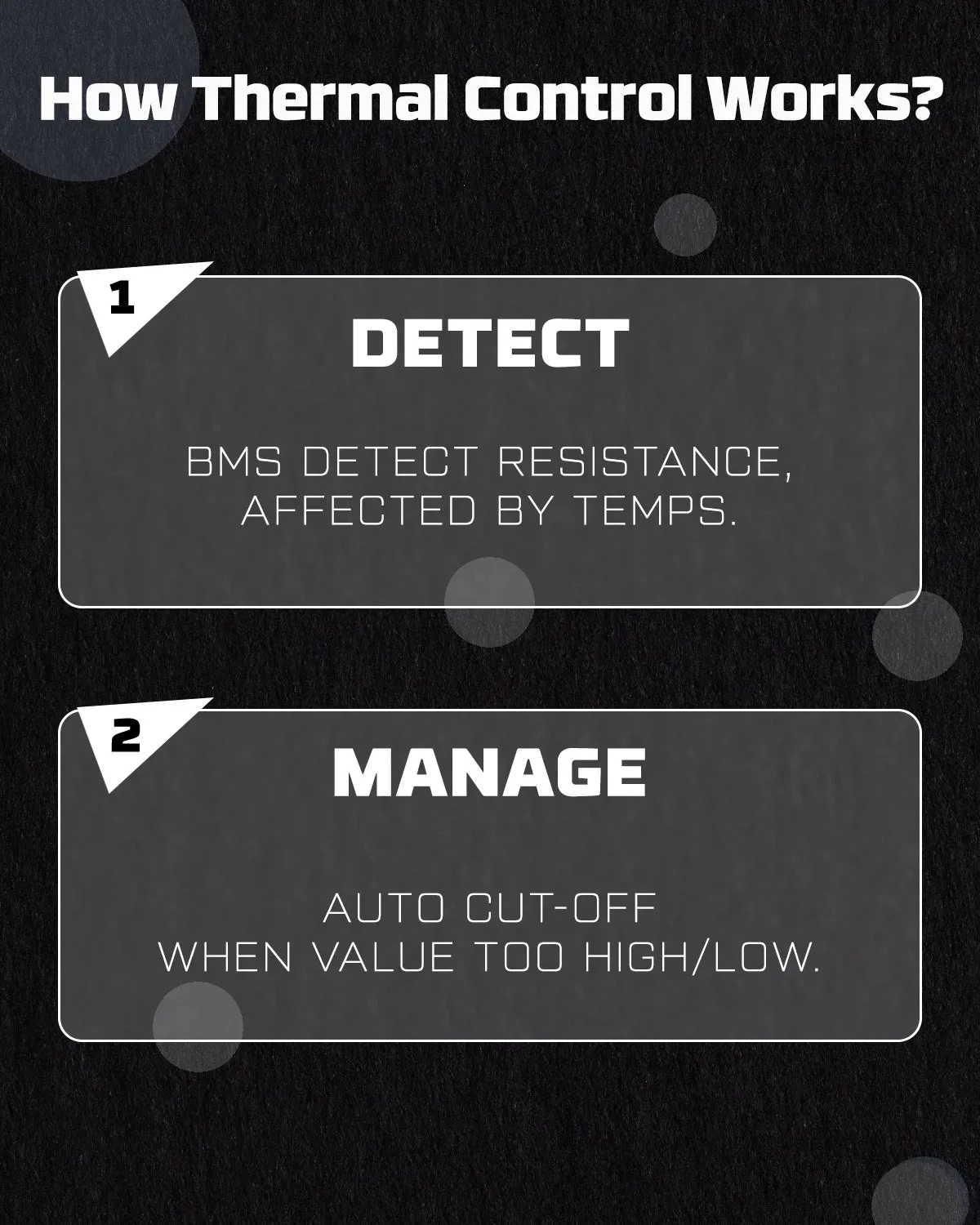

Especially protect the battery from: over-charge, over-load, thermal control
if the temperature goes too high or too low,
and cells voltage balancing function to maximum the battery cell performance.

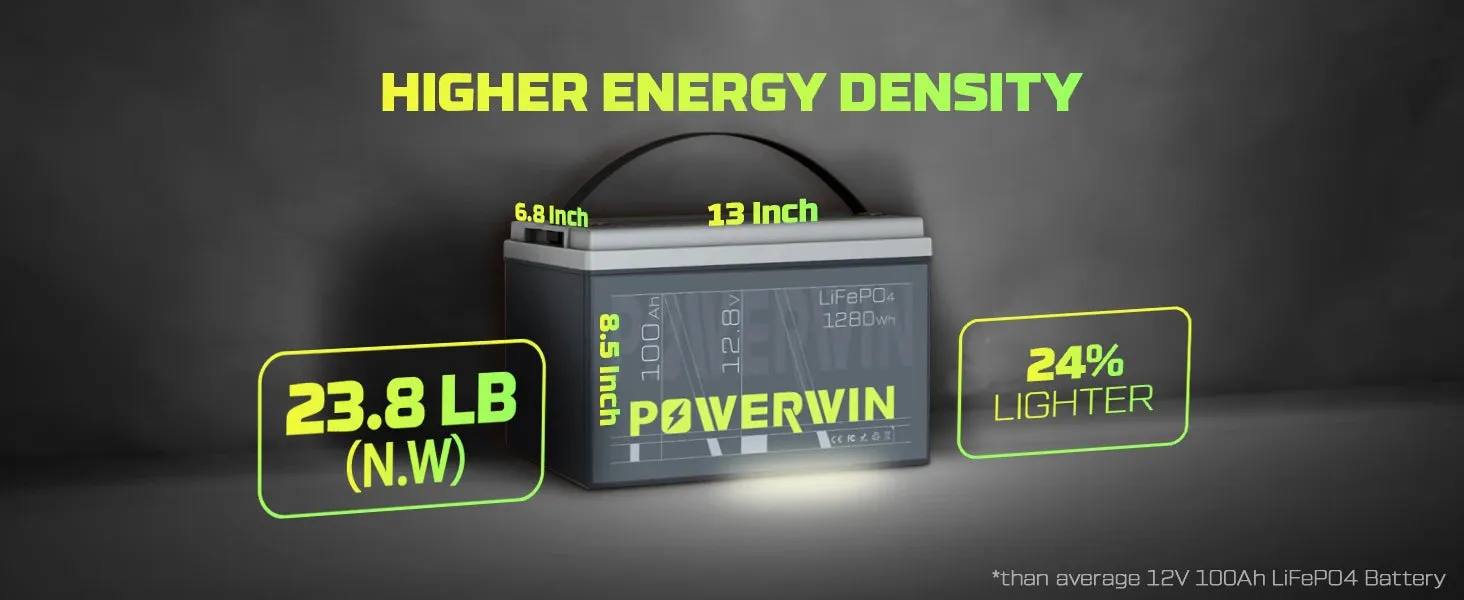

Compact Size for Big Power
100Ah general-purpose battery,
where compact size meets immense capability.
Perfectly designed for versatility and efficiency.

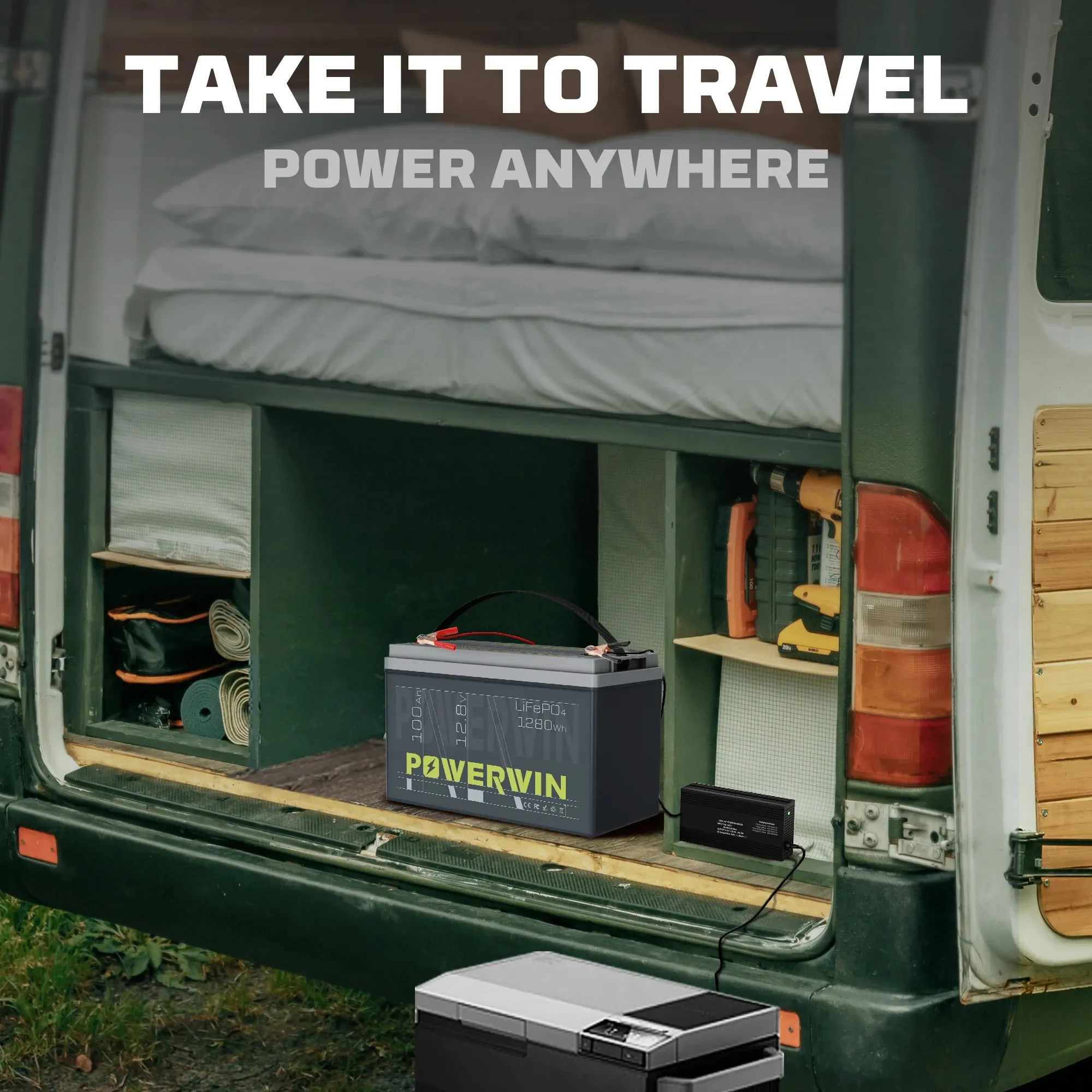

Whether it's for camping, DIY projects, or backup power,
our compact 100Ah battery is your trusted companion.
Redefine the New Energy
Durable, safer, and longer-lasting power source makes your budget spent
on every penny.

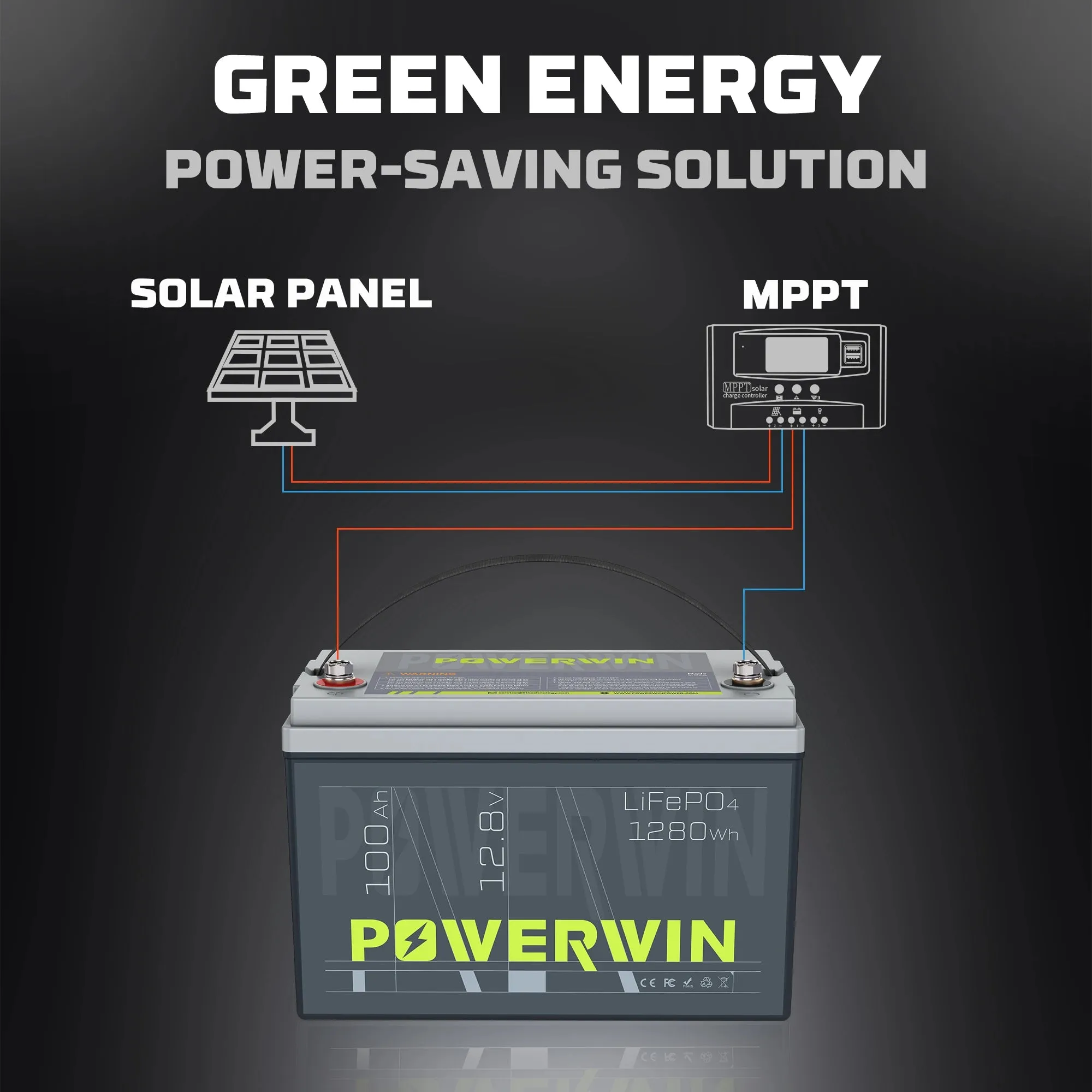

Versatile Battery For Multiple Scenario

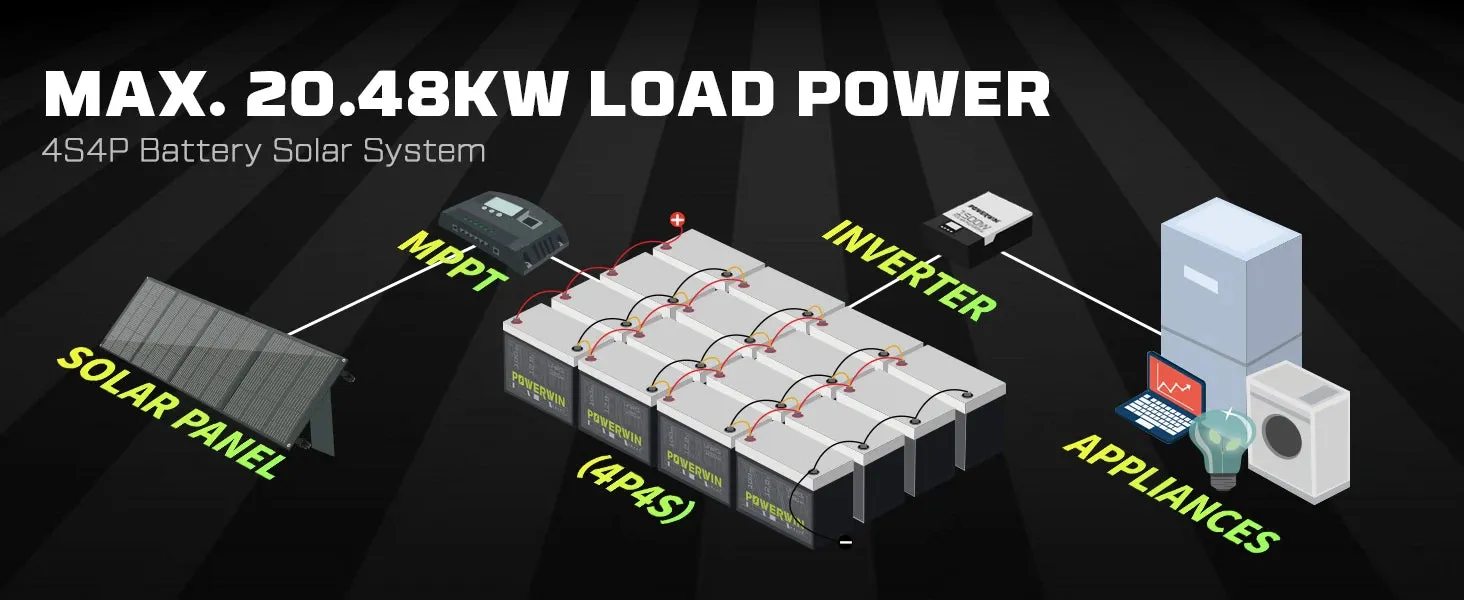

Extendable up tp 20480Wh capacity 4S4P connection batteries.
You may connect any device you would like to build up
your own off-gird power system.

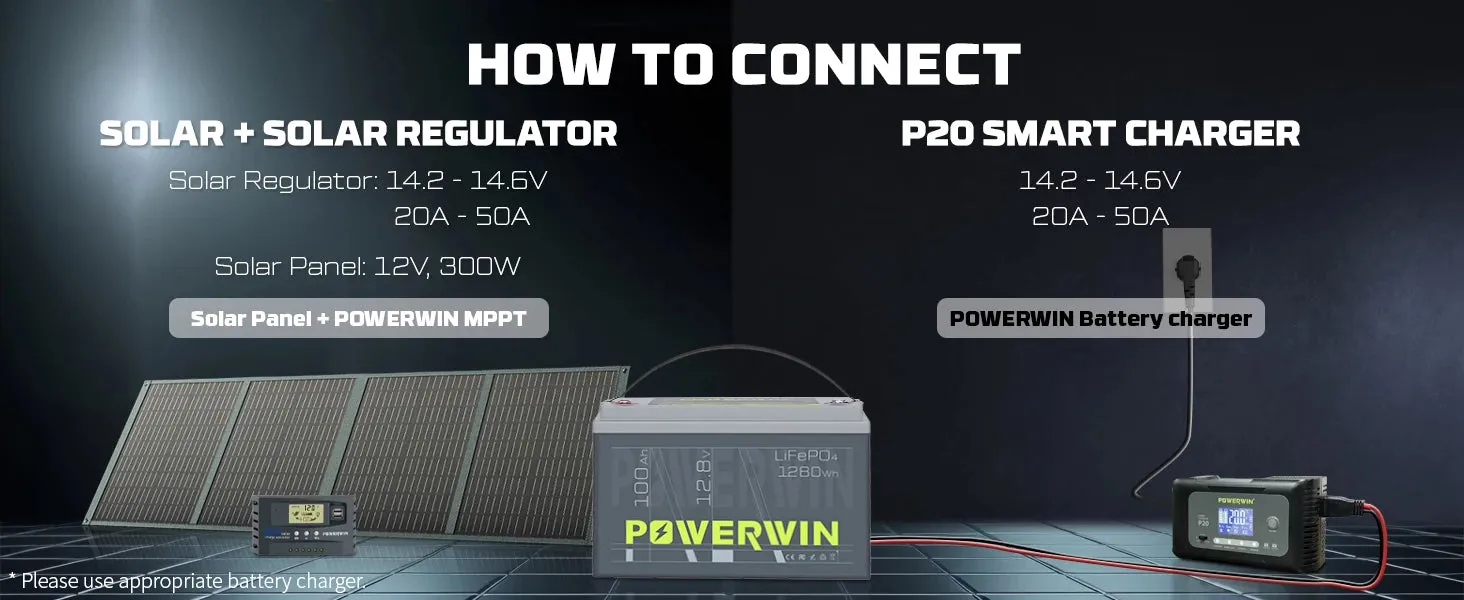

Charging Guide
There are two types of charging methods we recommended.
We highly recommend using our brand battery charger
as your first LiFePO4 battery charger.

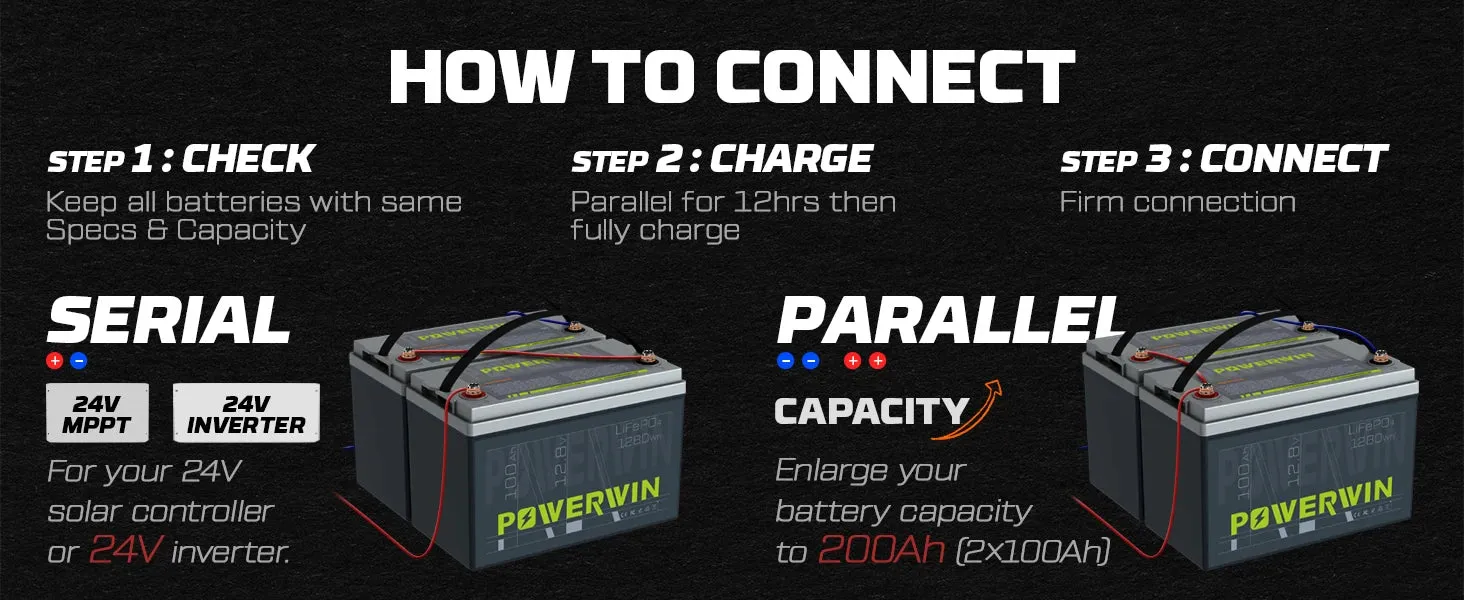

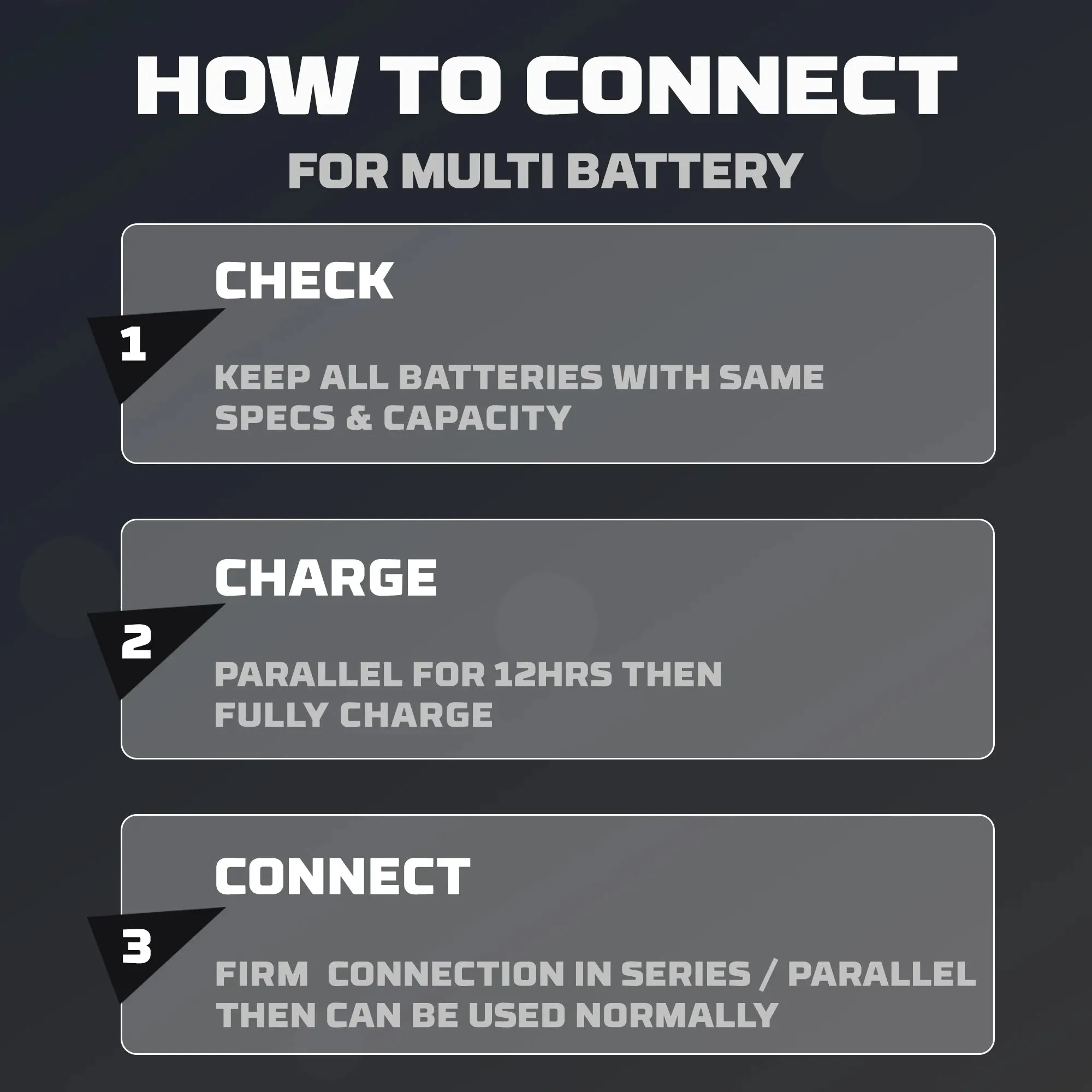

How to Connect LiFePO4 Batteries
t is easy as steps 1, 2, and 3.
You can connect in serial for enhance your battery power,
while connect in parallel for expand your battery capacity.
Versatile Energy Adaptable Utility
Invest in the future of energy storage
with our 12.8V 100Ah Lithium Iron Phosphate battery.
Experience the benefits of clean, reliable power,
and ensure your solar energy system operates at its peak efficiency.
