- REPLACE OLD OR BROKEN DOOR LOCKS – When your sliding door mortise lock is broken or old, don’t replace the door entirely, just get a new mortise door lock
- FOR SLIDING DOORS – This mortise lock replacement can be used on sliding patio doors constructed of wood, aluminum and vinyl, and fits on W and F manufactured handles
- 45 DEGREE KEYWAY - The keyway of the mortise door latch rests at a 45 degree position when the hook is fully extended in the locked position
- STRONG AND DURABLE – This patio door mortise lock set is constructed of a corrosion-resistant stainless steel housing and stainless steel faceplate

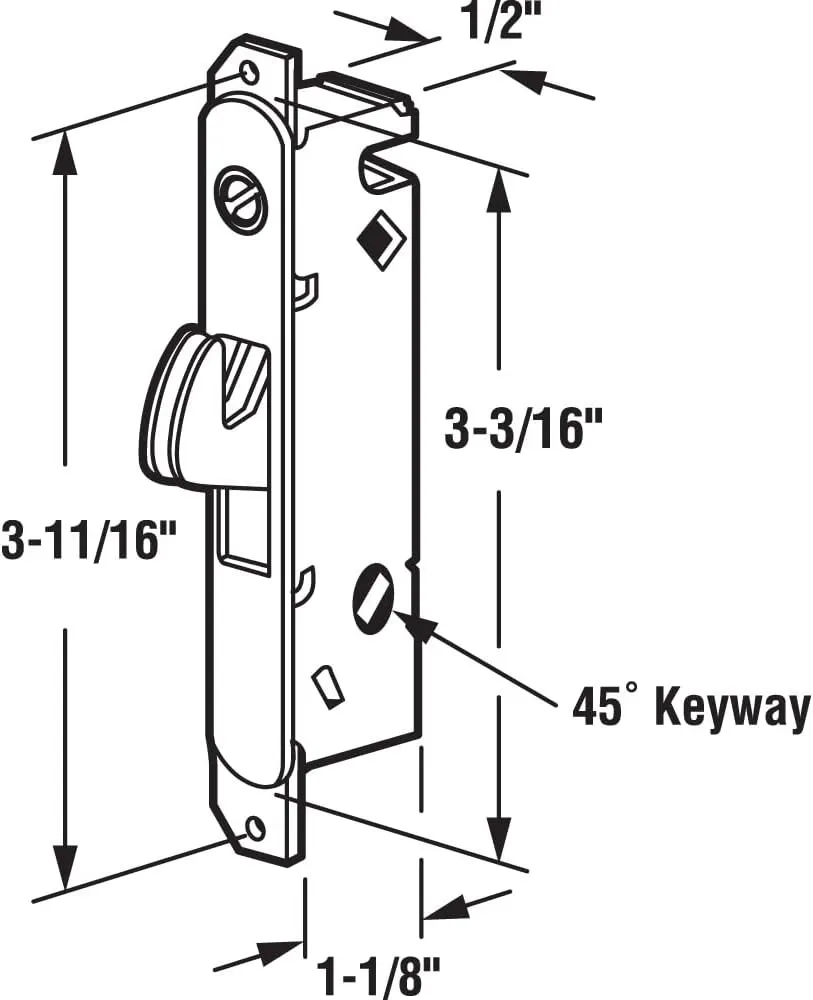

- DIMENSIONS – The mounting holes of the mortise latch are spaced apart at 3-11/16 inch on center; for all dimensional information please refer to the line art and compare to your needs before purchasing
Product Description

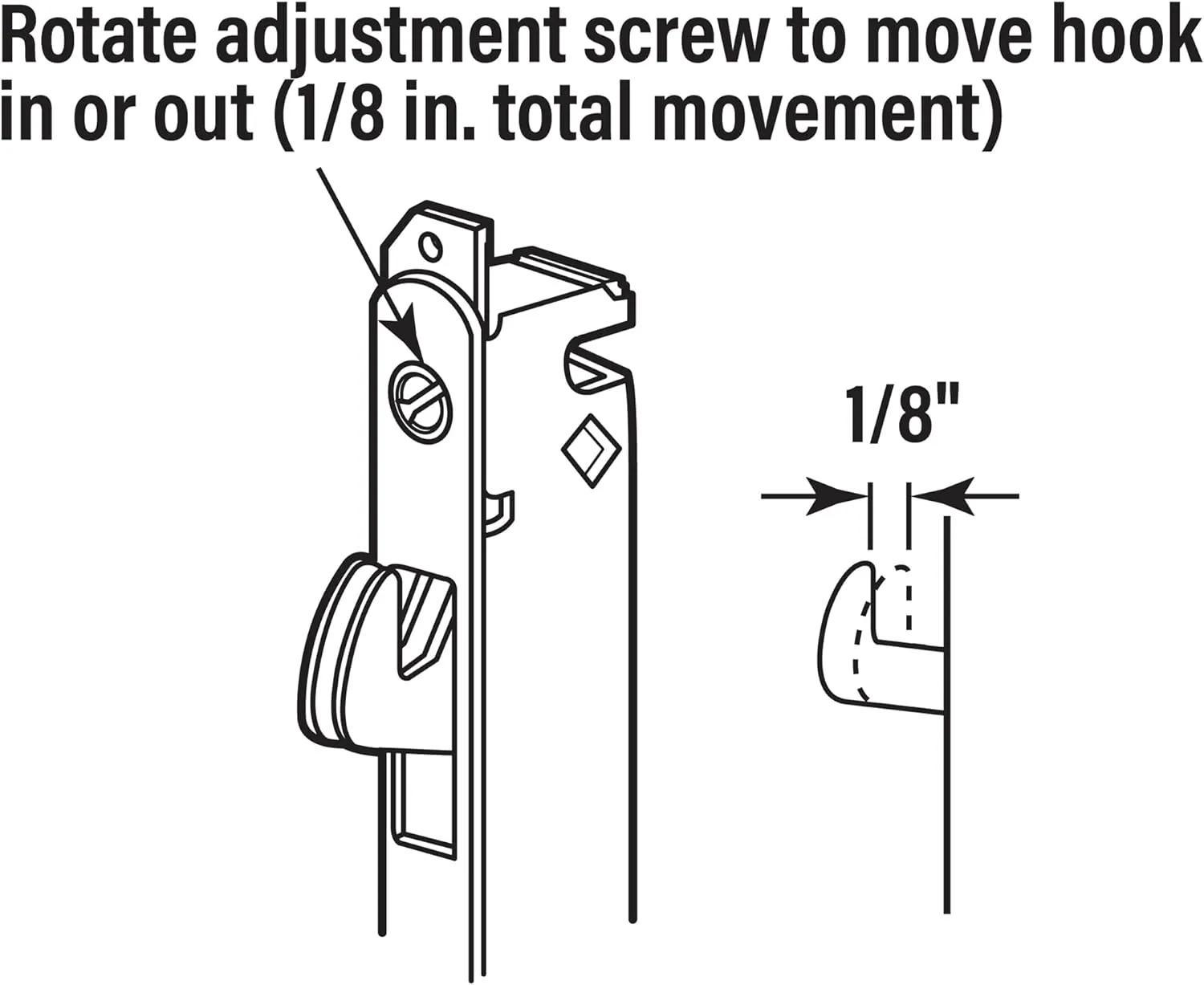

This Prime-Line E 2199 Mortise Lock is constructed with a corrosion-resistant stainless steel housing and stainless steel faceplate. The mortise lock set features a round-end face plate that serves as an adjustment feature for the hook's distance of projection. The keyway of the replacement mortise lock rests at a 45 degree position when the hook is fully extended in the locked position. The mounting holes of the sliding door latch are spaced apart at 3-11/16 inch on center. The patio door latch fits on W and F manufactured handles. For all dimensional information please refer to the line art and compare to your needs before purchasing.
From the Manufacturer
Mortise installation; steel housing and hook with round end faceplate. Keyway is in 45 degree position when hook is fully extended. Hook projection is adjustable. STAINLESS STEEL
