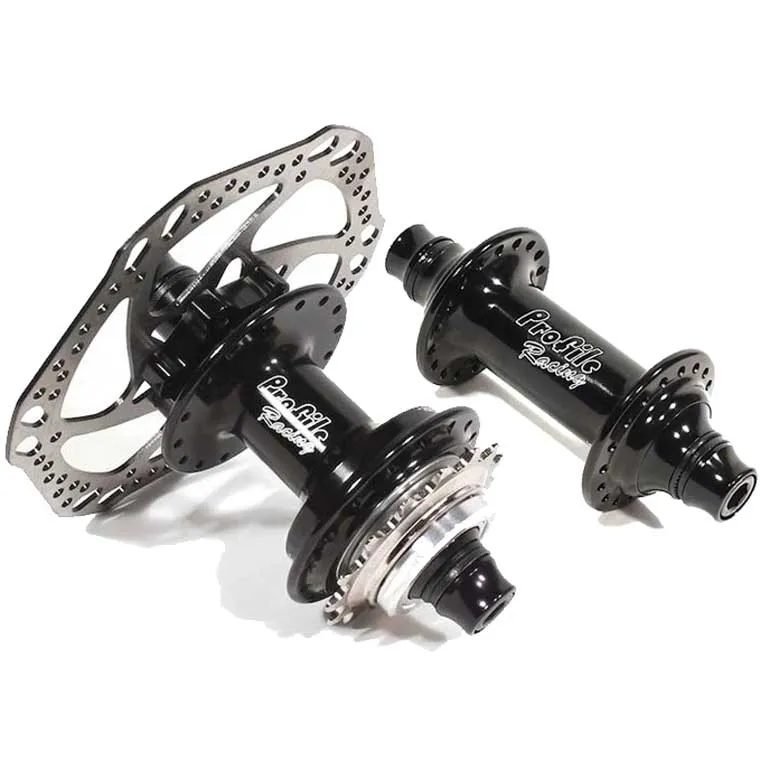

matching set of front and rear hubs *
* Elite disc rear and normal Elite front
36h

rear hub
RHD only
110mm axle spacing
ISO 6-bolt disc brake pattern (disc rotor not included)
six pawls and springs
204 engagement points for instant engagement and no-hesitation acceleration
ABEC 5 bearings
new labyrinth driver seal

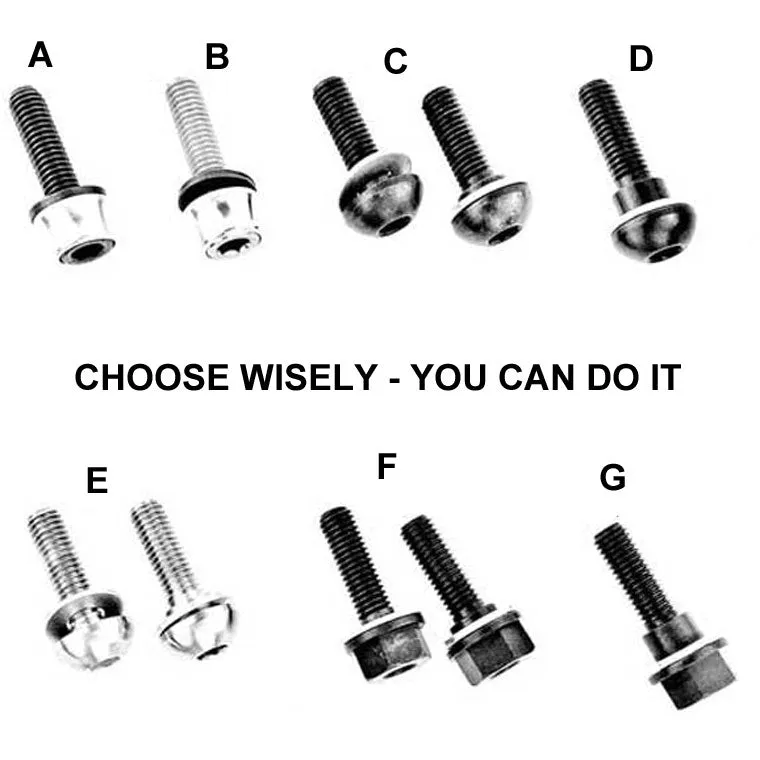

AL (aluminum) and CROMO (cromoly) female axles accept 3/8" x 16 tpi bolts with the following options:
a) cromo Socket bolts with polished AL Volcano washers *
b) titanium Socket bolts with polished AL Volcano washers - add $35 *
c) cromo Button bolts (full 3/8" or 3/8" with integrated 14mm adapter)
d) cromo Button PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)
e) titanium Button bolts (full 3/8" or 3/8" with integrated 14mm adapter) - add $35
f) cromo Hex bolts (full 3/8" or 3/8" with integrated 14mm adapter)
g) cromo Hex PEG bolts (3/8" with integrated 10mm long 14mm adapter for peg / dropout)
- rear axle only available in AL (aluminum), front axle available in AL or CROMO (cromoly)
- bolt chart available as you click through product images
- all bolts accept 8mm Allen key - “Hex” bolts also accept 17mm wrench or socket
- alloy or steel hub cone spacers (front), alloy hub cone spacers (rear)
* Volcano washers, we’ll match cone spacers color(s) unless otherwise noted in “order comments”
- please include any instructions in the “order comments” if you want an axle / bolt configuration not listed in the choices above (example: one Hex bolt and one Hex PEG bolt on a hub, etc.)

driver options:
cromo 1-pc driver: 9t, 10t
aluminum 2-pc Ultradriver removable cog: 12t - 18t
titanium 1-pc driver (add $50): 9t, 10t
titanium 2-pc Ultradriver removable cog (add $50): 12t - 18t
