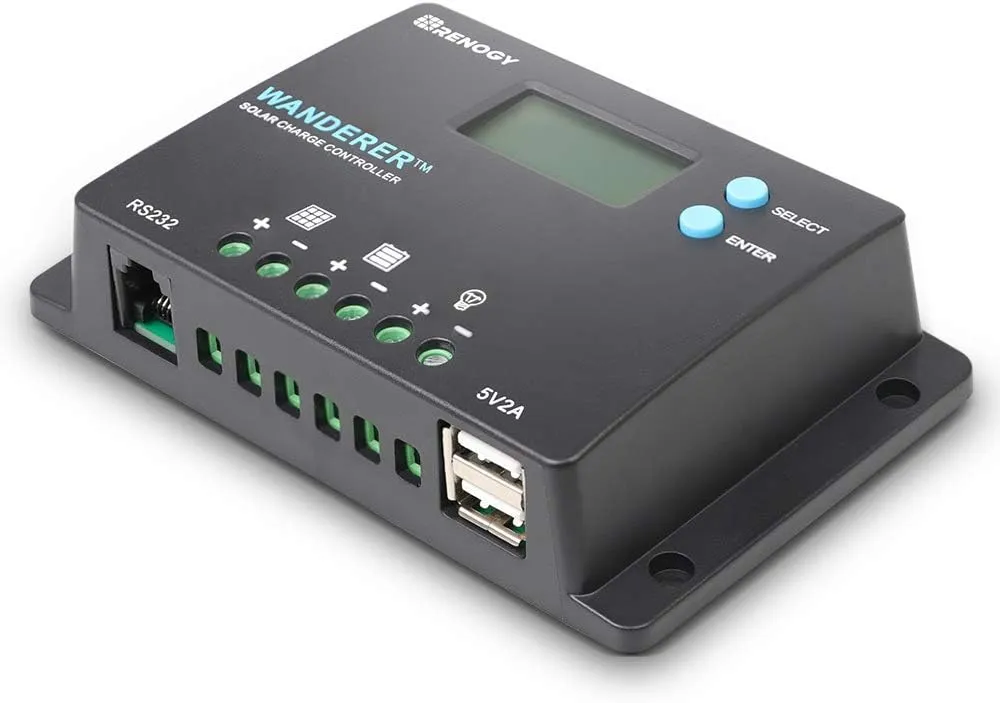

Name: Renogy 10 Amp 12V/24V PWM Negative Ground Solar Charge Controller Compact Design w/LCD Display for AGM, Gel, Flooded and Lithium Battery, Wanderer 10A
SKU: 113447

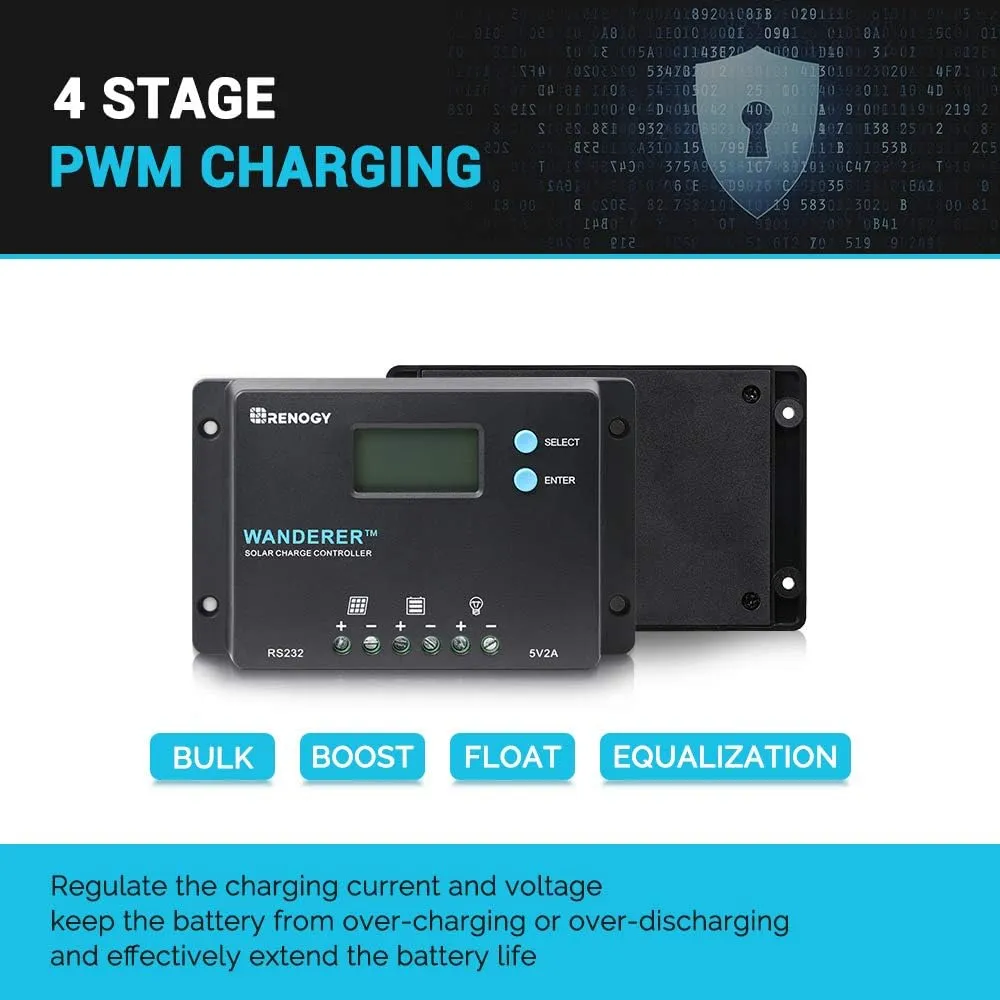

🔋 Smart 4-Stage PWM Solar Charge Controller – Features Bulk/Boost/Float/Equalization modes to extend battery life by 30% vs standard controllers. Auto-detects 12V/24V systems (non-lithium) & adjusts current pulses to prevent overcharging
🛡️ 6 Protections & Self-Diagnosis – This solar controller provides Overcharge/Over-discharge/Overload/Short-Circuit/Reverse Polarity Protection LCD error codes (Safer than 90% competitors). Negative Ground design resists interference

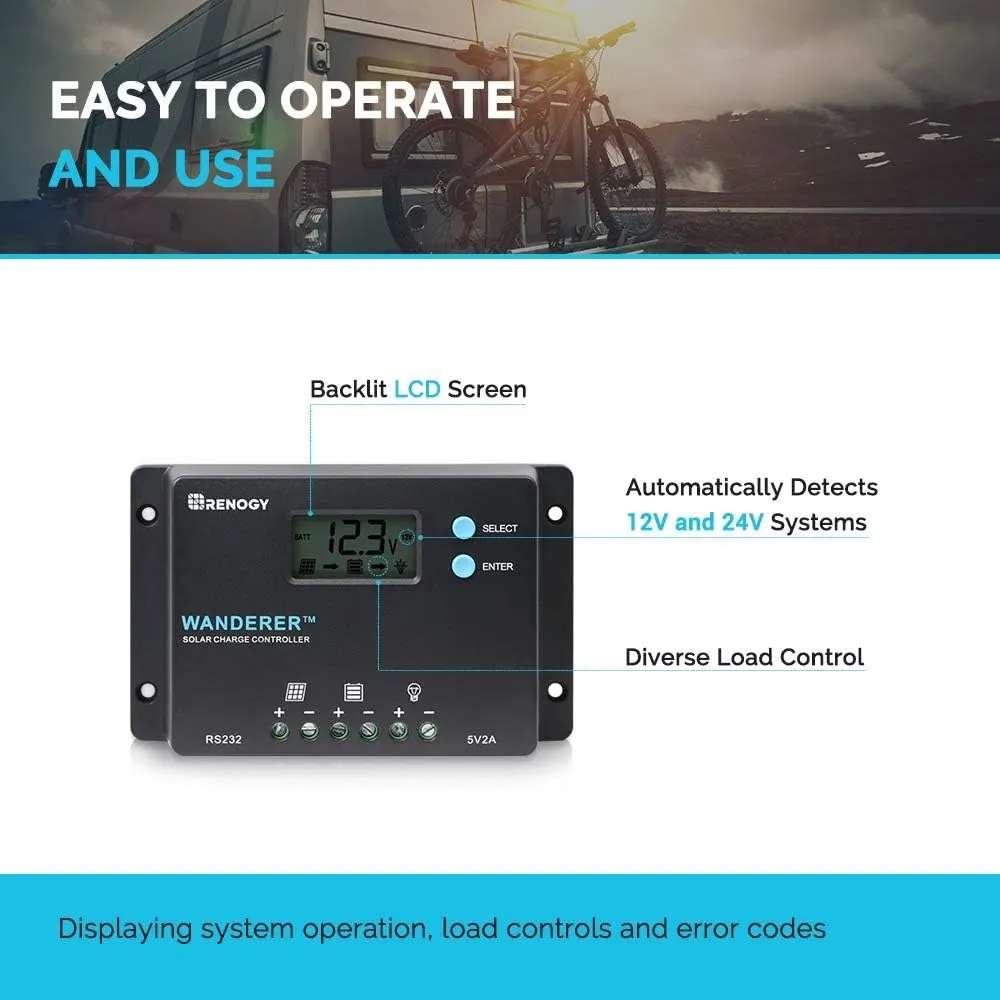

📡 Dual Monitoring & USB Charging – Backlit LCD displays real-time data RS232 port for Renogy DC Home App control of your Renogy charge controller. Built-in 5V/2A USB port charges phones/tablets instantly
📲 Real-time Monitoring – This solar charge controller integrates with BT-1 Bluetooth via RS232 port, delivering live energy data to Renogy DC Home App & Renogy ONE M1 smart monitoring center.

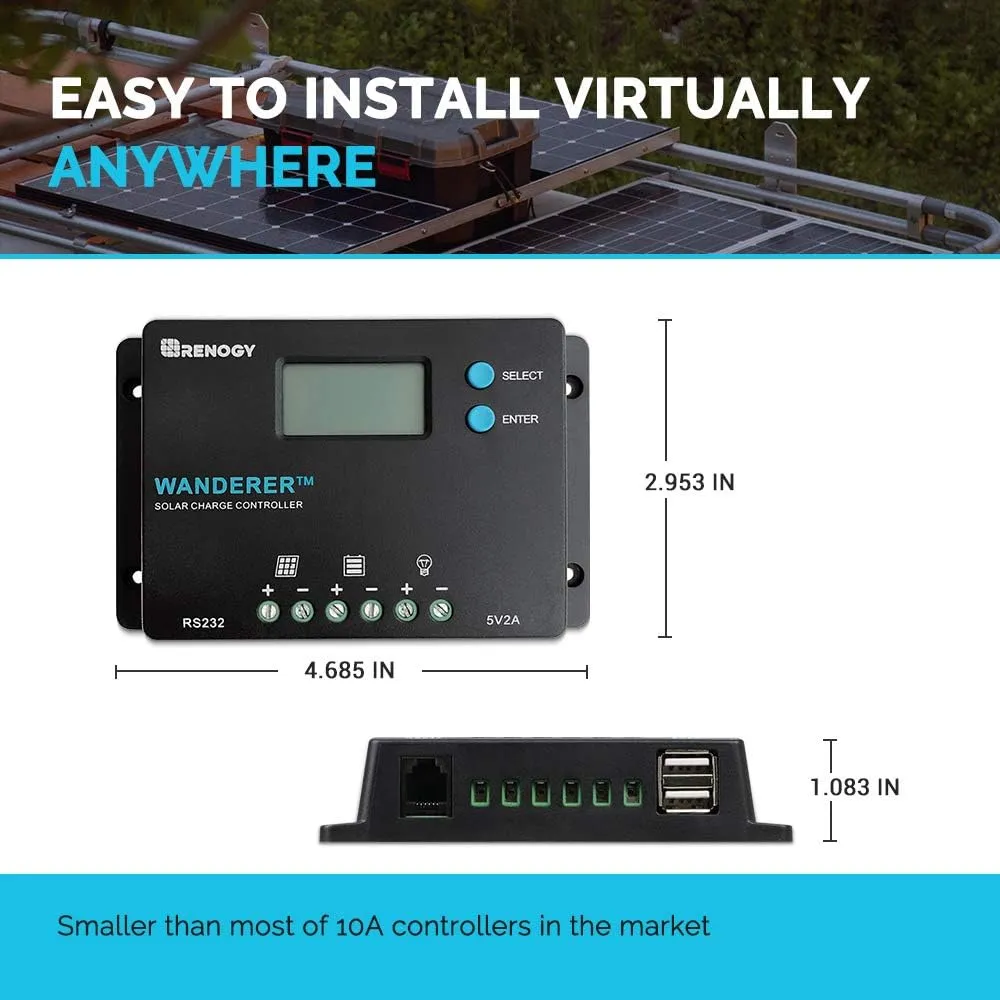

🔌 Ultra-Low Power Consumption – The solar charge controller draws <10mA itself, maximizing battery efficiency for off-grid systems (Ideal for cabins/RVs). Compact size fits tight spaces

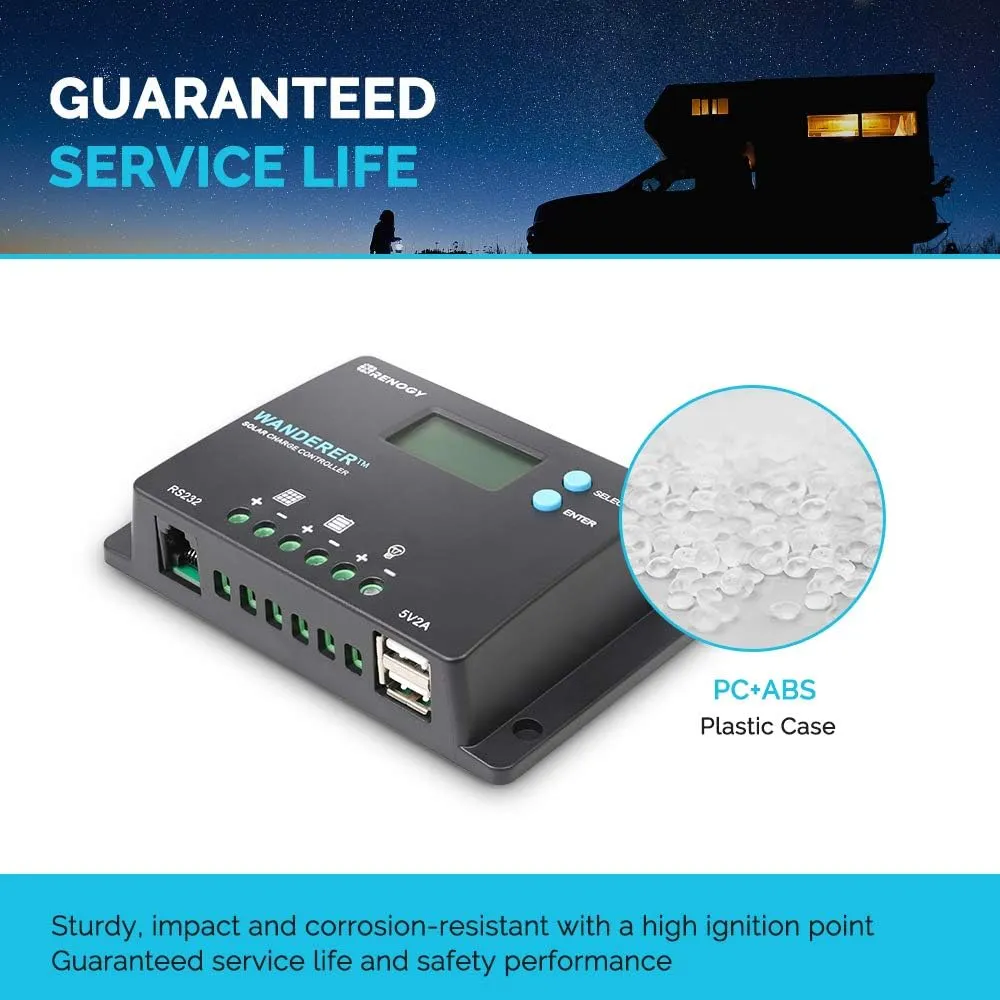

⚡ Wide Compatibility – This 12V solar charge controller works with AGM/Gel/Flooded & Lithium batteries (Set parameters manually for lithium). Waterproof casing for outdoor durability

PWM (Pulse-Width Modulation) charge controllers are an essential component of solar power systems, as they help to regulate the amount of energy that is transferred from the solar panels to the battery. The Renogy Wanderer PWM Charge Controller constantly monitors the battery voltage and adjusts the pulse width accordingly, so that the battery is charged safely and efficiently, extending their lifespan and improving the overall performance of the system. It is the most cost-effective option for those seeking an affordable, yet feature-rich charge controller. With a price point that is far lower than MPPT charge controllers on the market, the Wanderer offers exceptional value for its price. It supports multiple battery types including Gel, Sealed, Flooded, Lithium, and offers various load control modes for optimized efficiency. The LCD screen displays real-time charging parameters and error codes for easy monitoring. The controller also features a rugged aluminum housing with eight built-in electronic protections. This product is perfect for anyone in need of a reliable and efficient charge controller for small off-grid systems. With its affordable price point, user-friendly interface, and durable construction, the Renogy Wanderer is an excellent choice for those seeking a high-quality charge controller without breaking the bank.

Renogy 10 Amp 12V/24V PWM Negative Ground Solar Charge Controller Compact Design w/LCD Display for AGM, Gel, Flooded and Lithium Battery, Wanderer 10A

Product Details
