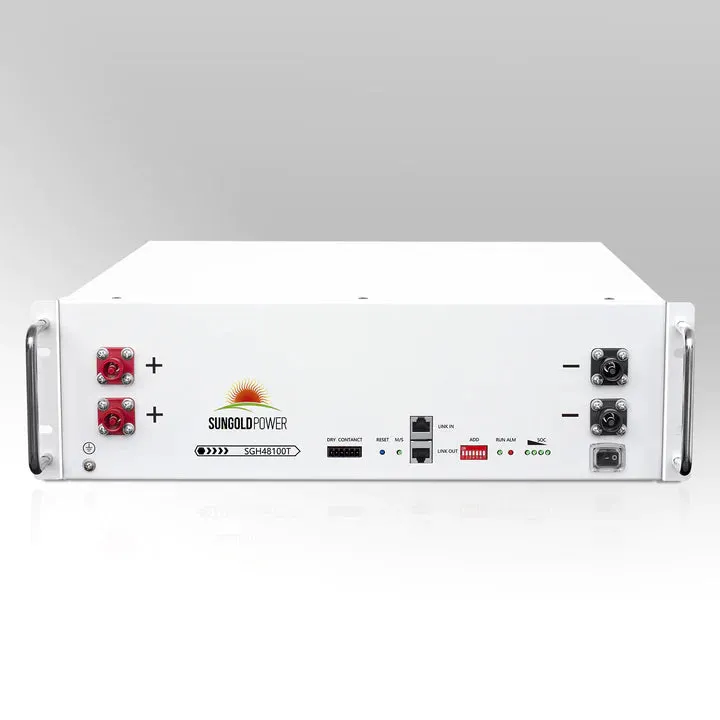

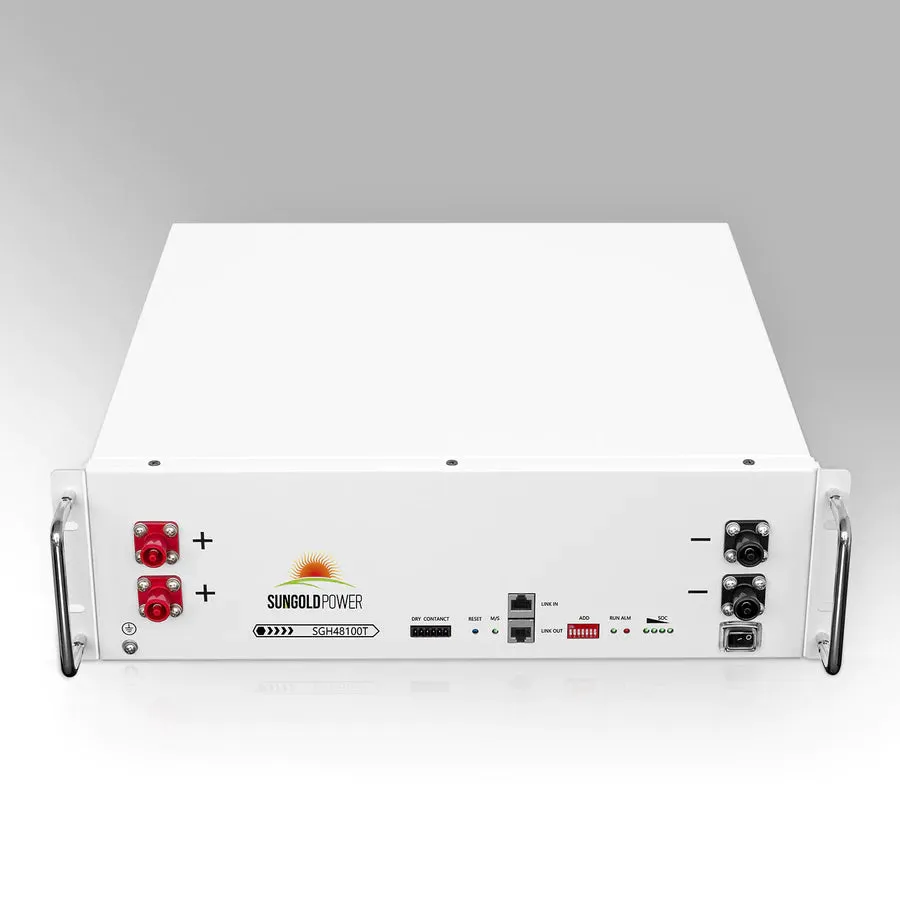

SunGold Power SGH48100T Server Rack 48V 100Ah Lithium Battery Self-Heating
- Long lifespan: Over 7,000 cycles and a 10-year warranty
- Safe and reliable: Equipped with a Battery Management System (BMS) that protects against over-charge, over-discharge, short circuit, and high temperatures
- Wide range of applications: Ideal for home energy storage, small commercial and industrial systems
Features:
- Self-heating system: Activates automatically at temperatures between -13°F and 41°F ( -25°C and 5°C) to ensure optimal performance in cold environments
- High capacity: 100Ah
- Nominal energy: 5.12kWh
- 3U rack mount design
- Compact and easy to install
- Maintenance-free

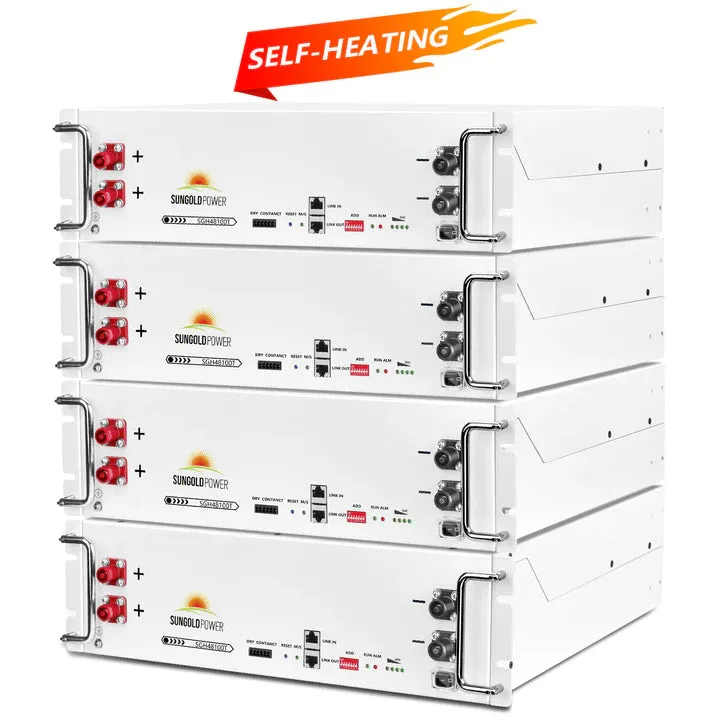

- Can be assembled in parallel up to 32 units for increased capacity
Benefits:
- Reliable power backup for critical applications
- Improved efficiency and performance in cold weather conditions
- Scalable design for growing energy needs
- Safe and long-lasting operation
Specifications:
- Battery Model: SGH48100T
- Chemistry: Lithium iron phosphate battery
- Nominal Voltage: 51.2V
- Max. voltage range: 44.8~57.6V, Shipping voltage>51.2V
- Charge voltage: 56.0V
- Nominal [email protected]: 5.12KWh
- Nominal [email protected]: 100Ah
- Dimension (LWH): 18.95.218.1 inch (482133.5460mm)
- Weight: 101lb(~46kg)
- Standard charge current: ≤50A
- Max. charge current: 57.6V
- Standard Continuous Charge/Discharge Rate: 70A
- Standard discharge current: <50A
- Max. discharge current: 100A (initial temp. ≤86°F (30°F))
- Peak discharge current: 101~119A@5mins | 120~200A@15S
- Communication: RS485/CAN
- Max parallel number: 32pcs
- Operation temperature:
- Charge: 14°F to 122°F (-10 to 50°C)
- Discharge: -4°F to 122°F (-20 to 50°C)
- Heating opening condition: -13°F (-25°C) ≤ T ≤ 41°F (5°C) @ l ≥ 0.08C
- Heating completion condition: T ≥ 53.6°F (12°C)
- Storage temperature @off mode:
- 14°F (-10°C) < T < 113°F (45°C) for 3 months
- Recommended environment: 59°F to 95°F (15°C to 35°C), 5~75%RH
Order your SunGold Power SGH48100T Server Rack Lithium Battery Self-heating today for reliable and long-lasting backup power for your critical applications!
