- Turn key to ON Position and remains in ON position (key will pull out)
- Universal key switch. Will work with all gate and garage door openers
- Stainless steel plate accepts standard 19mm (3/4") barrel
- Rated Current: 4A 125V AC, 2A 250V AC
- Switch terminals are colored for recognition
Description:

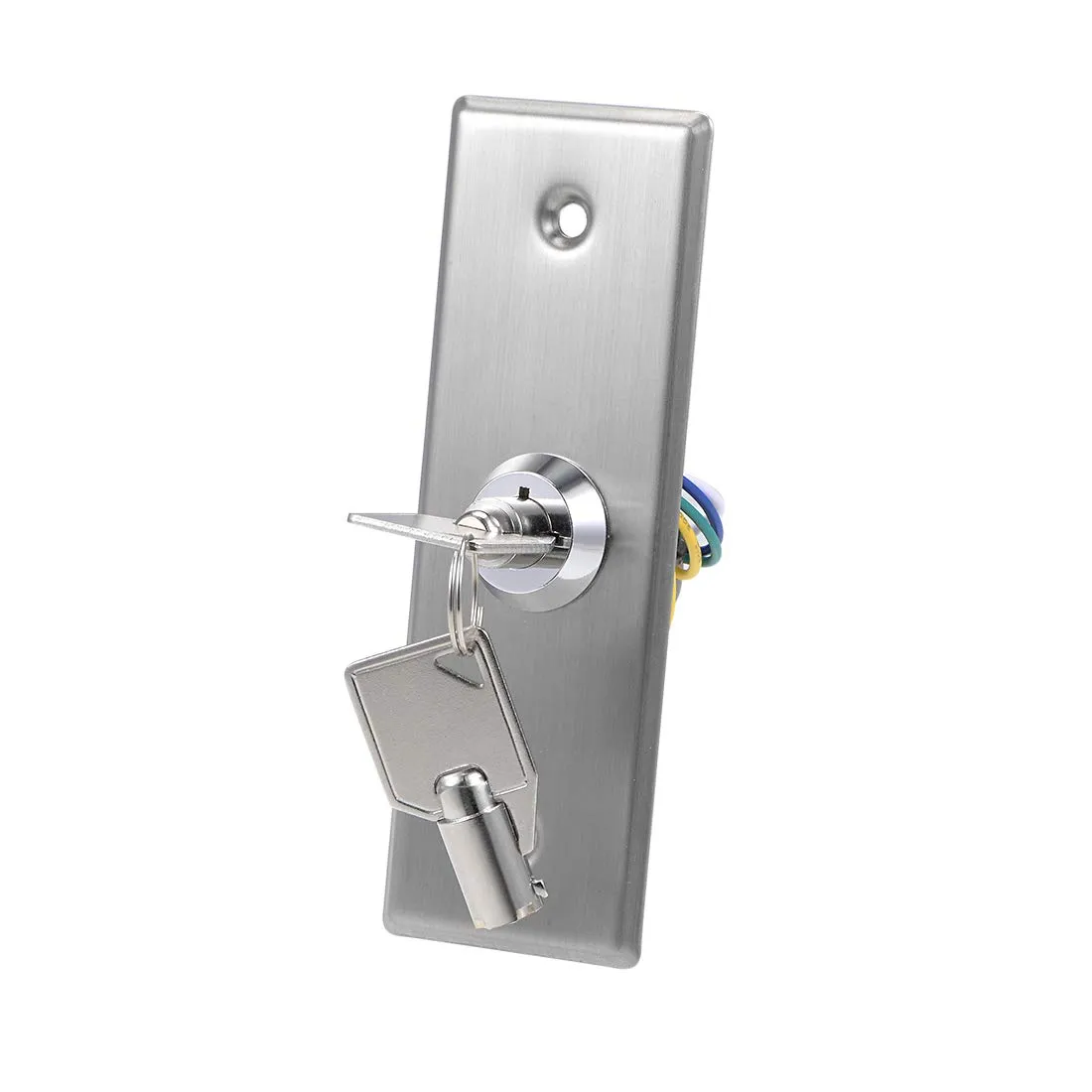

-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-Exit switches come in handy when one wants to regulate the comings and goings of people.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
Specification:
Panel Material: 304 Stainless Steel
Rated Power: 4A 125V AC / 2A 250V AC
Type: SPST
Contacts Type: 1 NO, 1 NC, 2 COM
Cable Length: 20mm / 0.79"
Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)
Mounting Cut Hole: 19mm / 3/4"
Panel Mounting Hole Diameter: 4.5mm / 0.18"
Panel Mounting Hole Distance: 83mm / 3.27"
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
- Package Dimensions : 7.87 x 4.69 x 2.05 inches; 5.29 ounces
- Date First Available : April 26, 2019
- Manufacturer : uxcell
