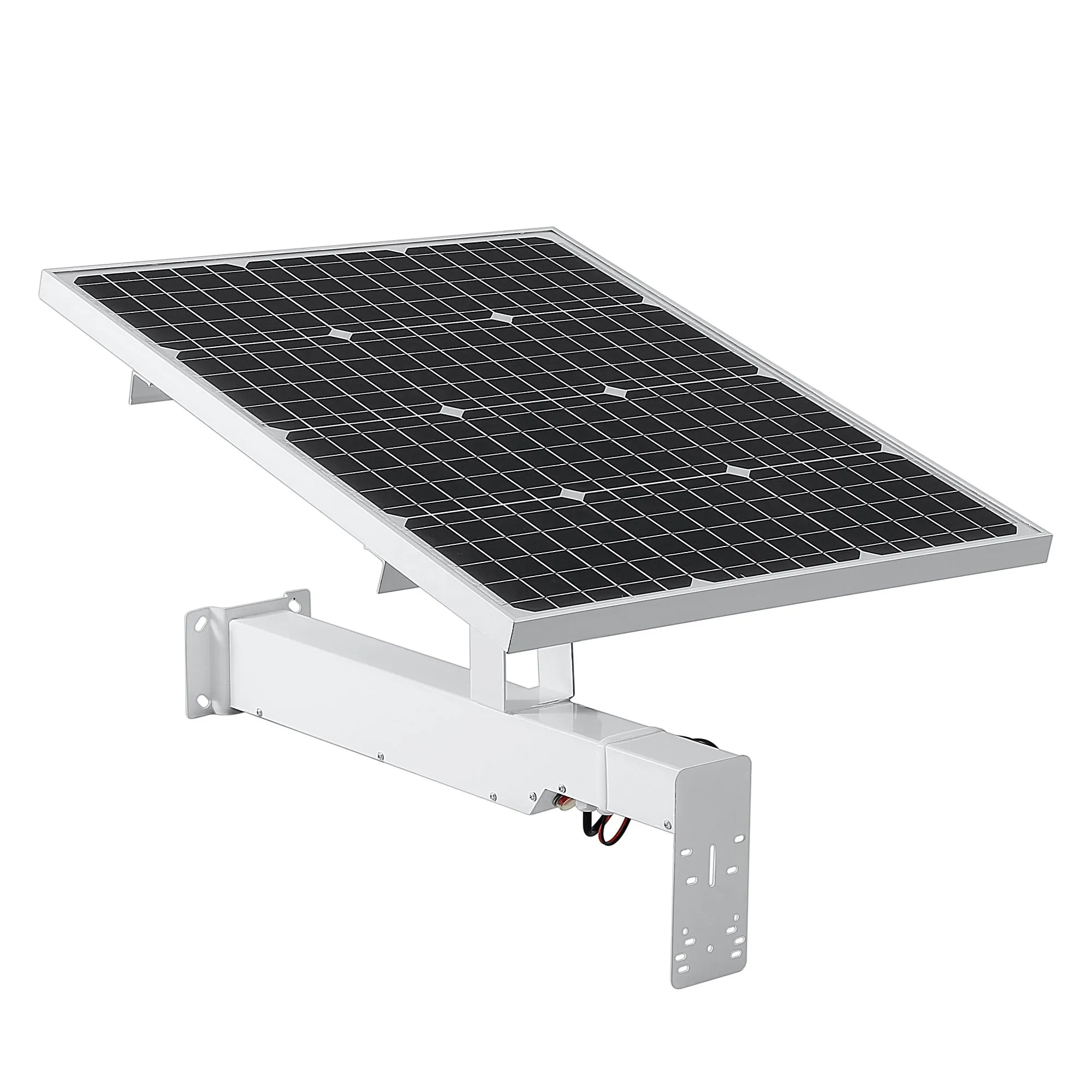

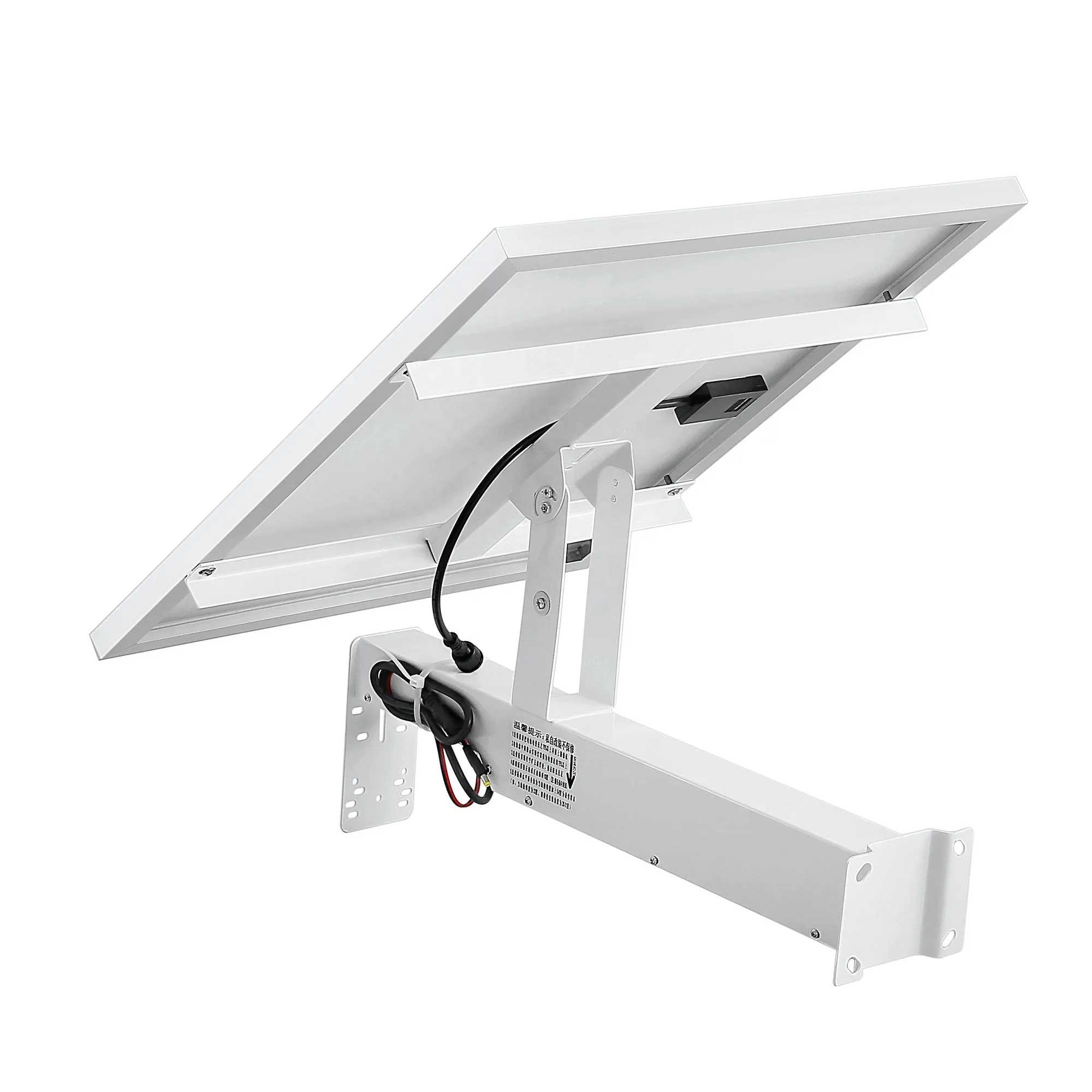

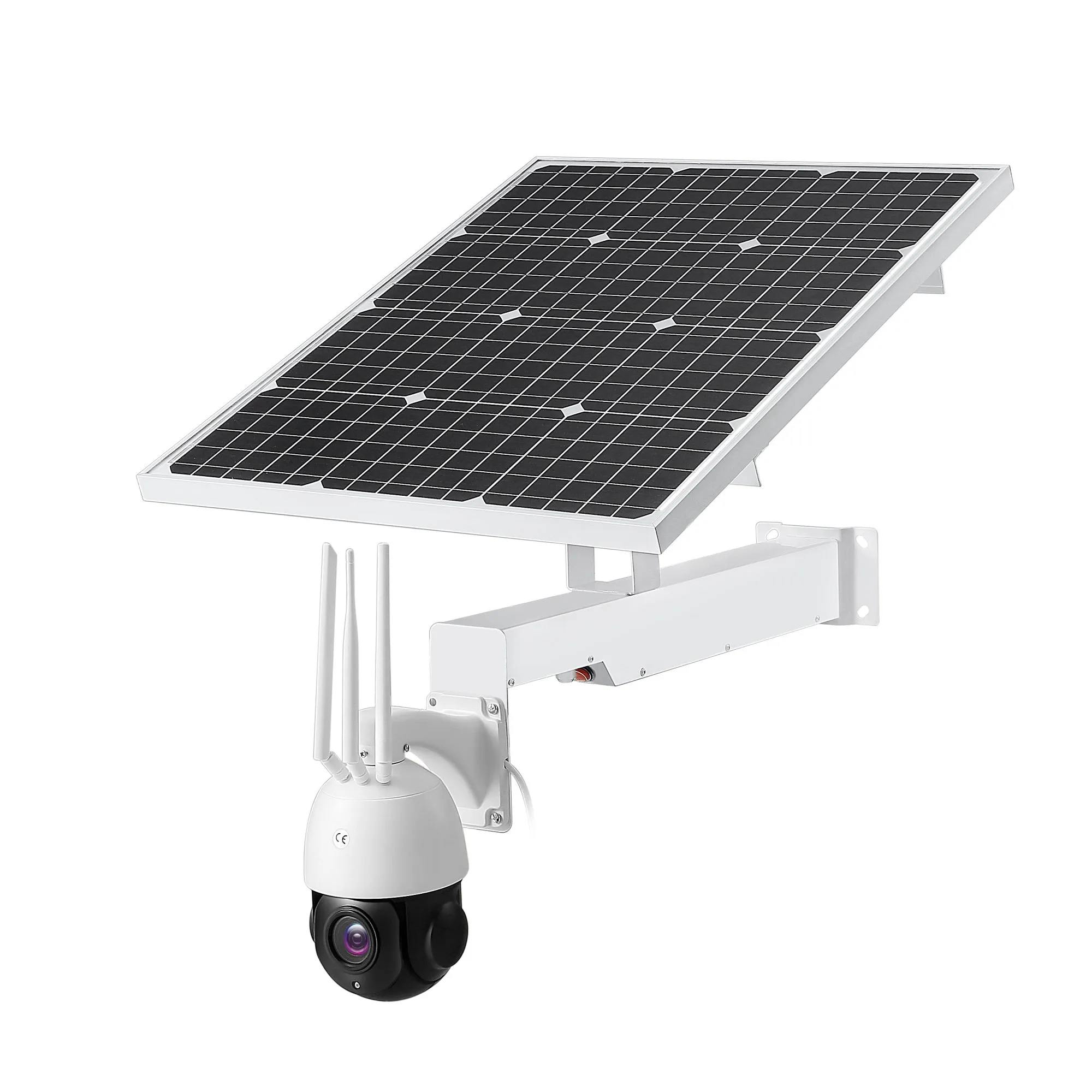

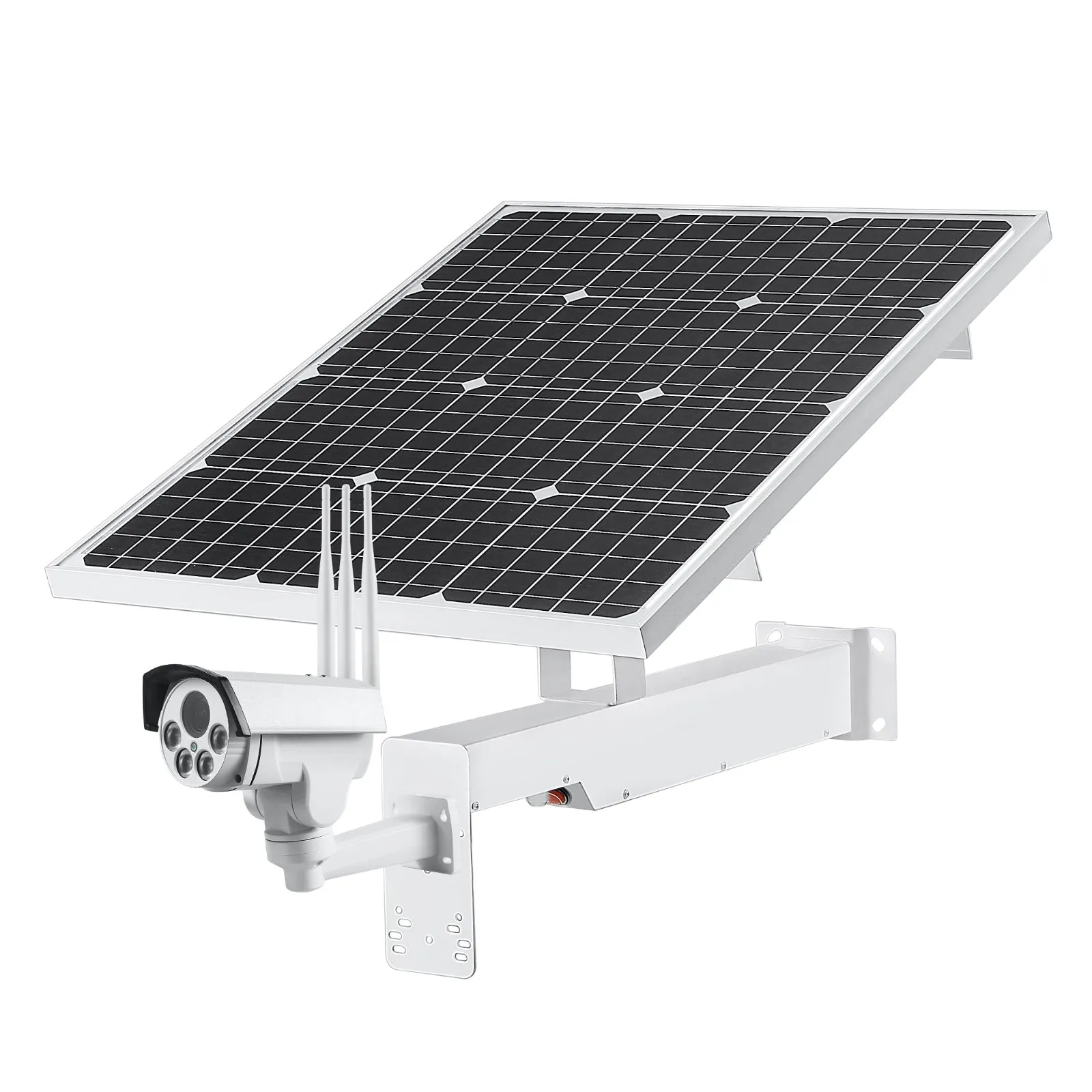

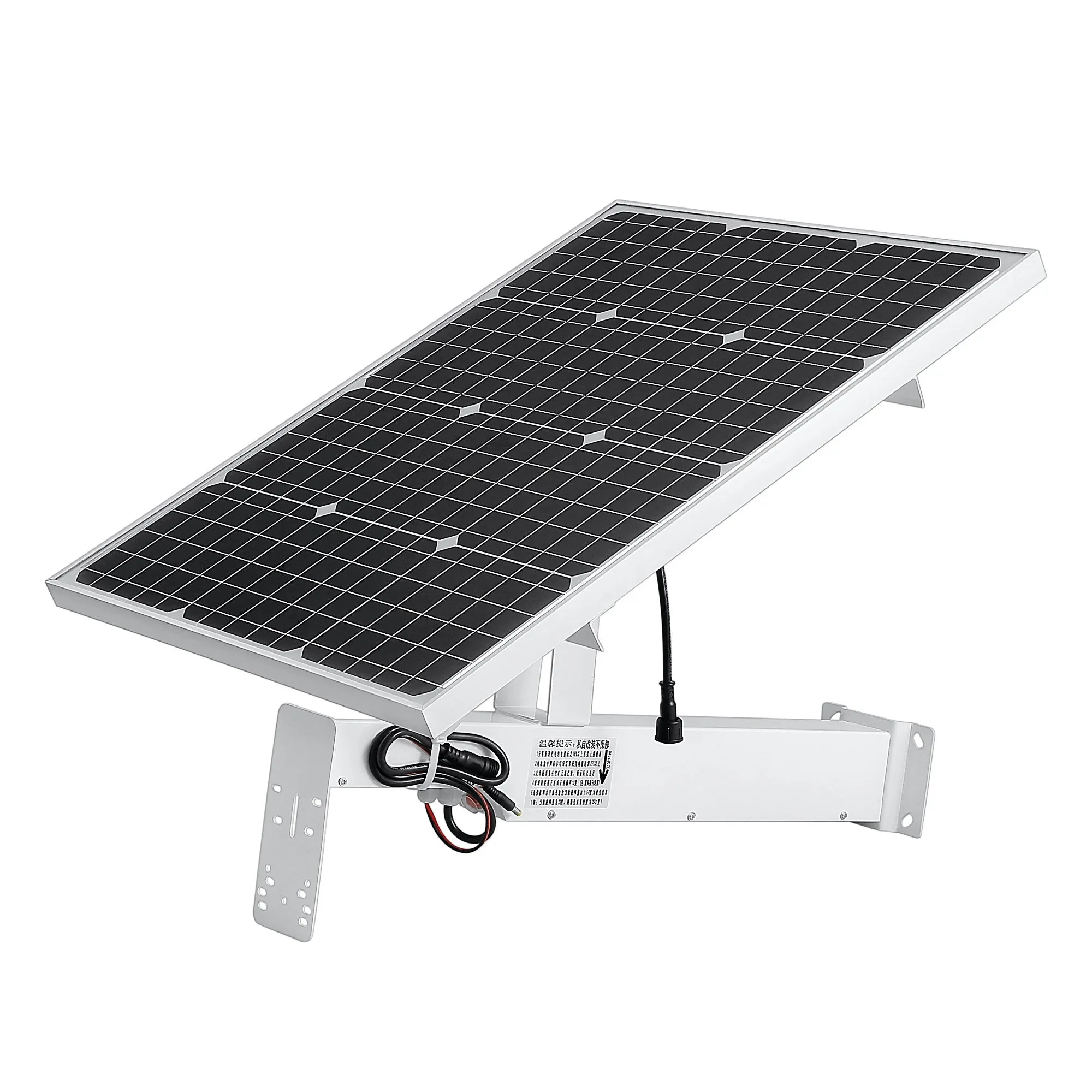

Professional 60 watt solar panel CCTV camera bracket with internal 12v DC / 60A battery. Designed to operate wireless cameras all year round on battery/solar when no other power source is available. The 12v 60 Amp battery fitted inside arm of bracket powers camera and 60W solar panel recharges battery keeping it working all year round. Bracket includes LED charge indicator and power switch.

Perfect solution for off grid locations and can be used for other 12 volt requirements. Designed for mounting and operating wireless 4G / Wi-Fi cameras on construction sites, farms, stables, barns, lakes, ponds etc.
Built to the highest standard with Lithium ion phosphate battery and amorphous silicon solar panel, this truly high specification high quality product is built to last for many years without any maintenance.

Please note, this sale does not include a camera. If you wish to purchase both, click .

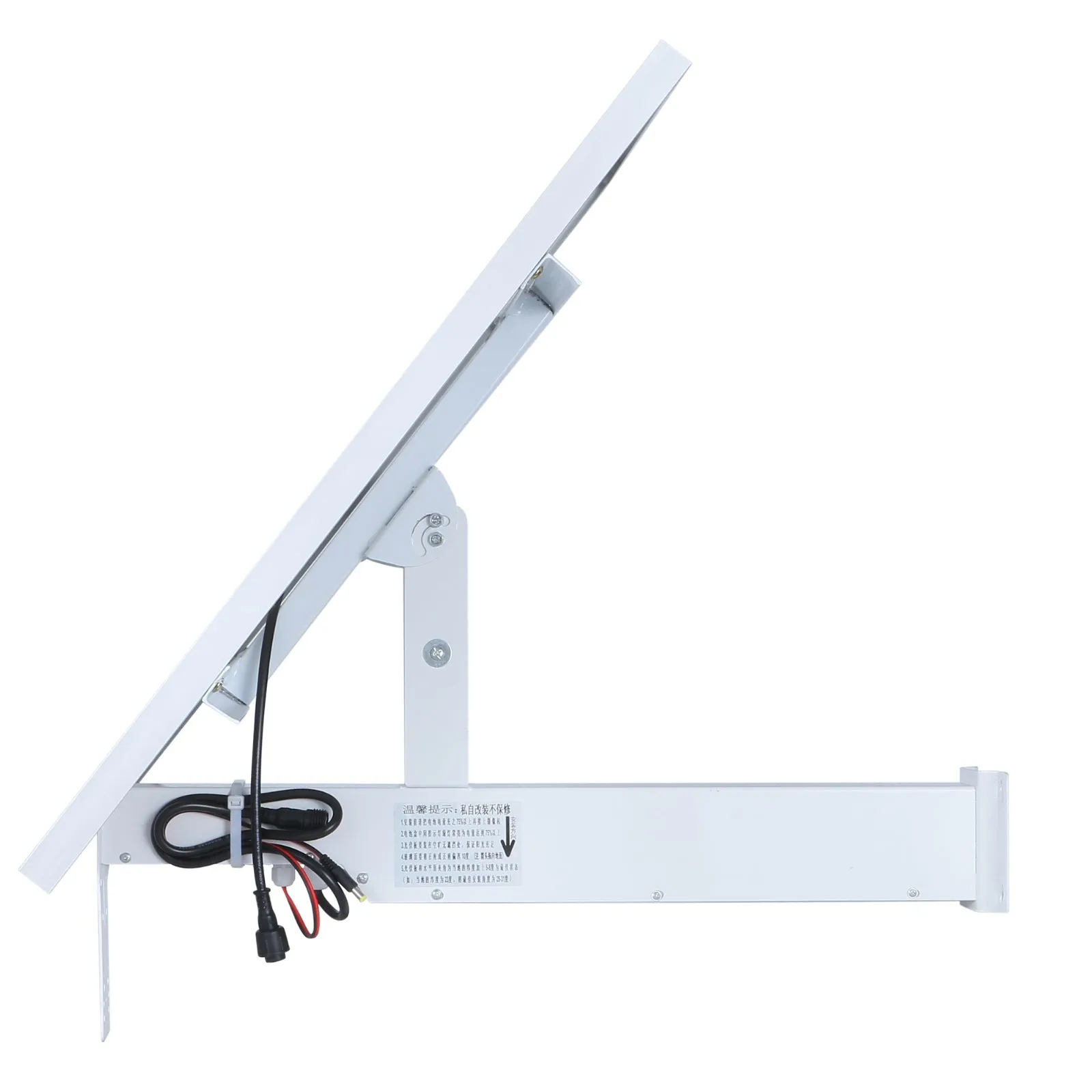

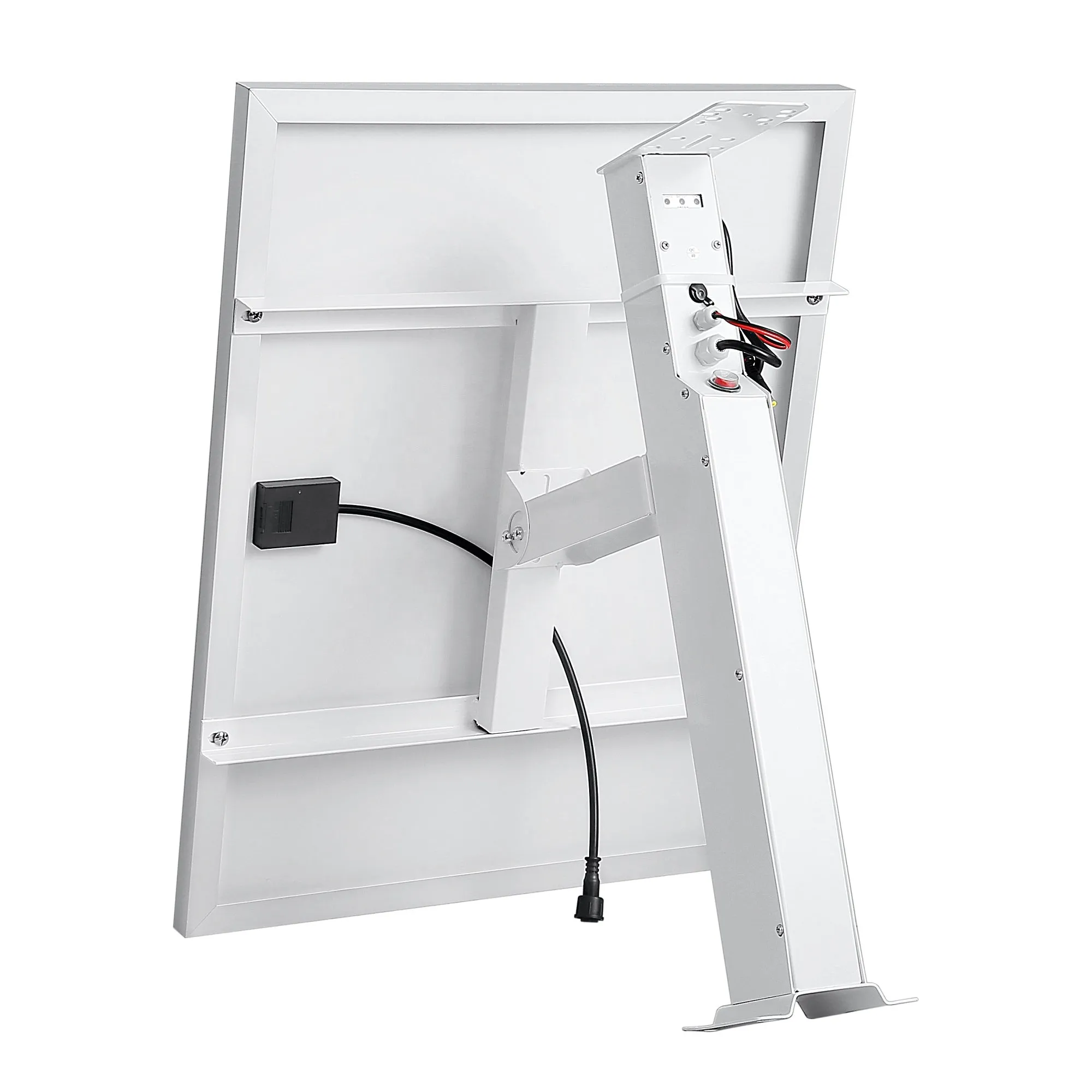

The solar panel is larger than it looks in pictures (67cm x 53cm) and bracket protrudes 52cm from wall. This needs planning to make sure it is suitable to install. Made of 2.5mm thick solid steel and mounts most 12v CCTV security camera's. Bracket has 12v / 60Ah rechargeable battery inside with standard 2.1mm DC connector plug and power switch. Also built into bracket is LED charge status of battery.

Disclaimer: Micronic can not guarantee the solar panel and battery inside bracket will power all camera's all year round. Depending on usage and installation the battery life will vary. Lack of sunlight/daylight required for solar panel to keep battery charged is down to planning of installation and location. A minimum of 4 hours normal daylight is required and still depends on camera usage. If watching camera live 24 hours a day with no daylight battery lasts for 4 days. Fully discharged battery the solar panel requires 8 hours of good sunlight for camera to come back to life. This happens automatically without the need to go back to camera and reset. It then needs a few decent days of sunlight to fully recharge battery and return to normal state. We have never experienced this problem with any of our customers but have tested how it worked when treated this way. A total of 48 hours of good sunlight over 4-6 days is required to fully recharge battery. Camera continues to operate normally whilst recharging battery.

Specification

Item model/part number: 12V/60A Solar Panel

Peak power (Pmax): 60W
Peak voltage (Vmp): 18.17V
Peak current: 3.8A
Short circuit power supply: 3.7A
Solar cells: 36pcs monocrystalline sillicon (125x41.66mm)
Max system voltage 1000V DC (IEC)/600V (UL)
Waterproof rating: IP65
Operating Temp: -40℃~ 85℃
Solar panel size: 670x630x25 mm
Battery type: Lithium ion phosphate battery
Battery capacity: 60AH
Operating voltage: 8.25~12.6V
Continuous current: ≤20A
Instantaneous current: 50A
Charging voltage: 12~12.6V
Recharging current: 0.5~10A
Interface line: Charge DC type, discharger T type
Cycle life: 1000 times
Battery weight: 3.2kg
Battery size: 195x115x70 mm
Safety: Overcharge protection, over discharge protection, short circuit protection, excessive current protection
Bracket material: Steel
Installation: Rack mounting
Overall size: 790x705x225 mm
Weight: 14kg
